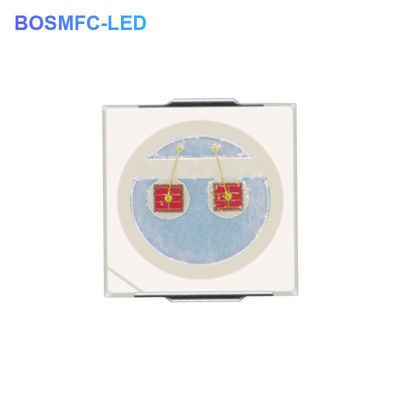

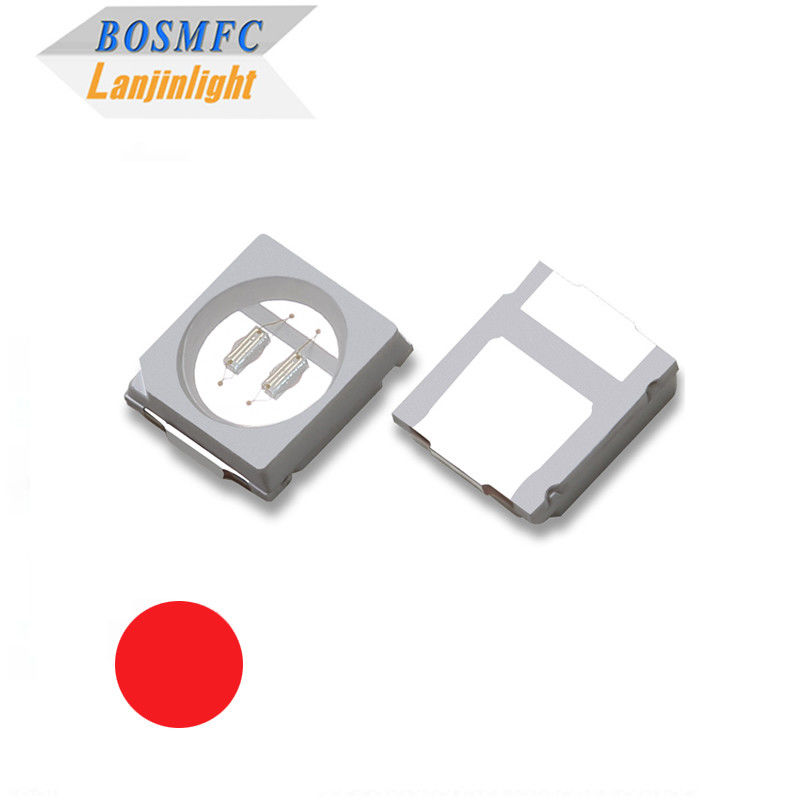

3030 SMD LED Chips 1W double Chips High Lumen 660nm Red Light
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3030 SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|
| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor / Outdoor Lighting | Power: | 1 W |
|---|---|---|---|
| Emitting Color: | Red Color | Wavelength: | 620-635nm |
| Forward Current: | 300mA | Forward Voltage: | 2.0-2.2v |
| Luminous Flux: | 30-40lm | Viewing Angle: | 120° |
| Size: | 3.2*3.0*0.62mm | Color Rendering Index (Ra): | 80 |
| Operating Temperature(℃): | -40 - +85 | Storage Temperature(℃): | -40 - +100 |
| Lifespan: | 50,000 Hours | Warranty: | 2-3 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 4000pcs/reel |
| Highlight: | 3030 smd led light strip,3030 Red LED Chip,3030 led strip light |
||
Product Description
Wholesale 3030 SMD LED Chips 1W 2 Chips High Lumen 660nm Red Light
3030 SMD LED---Lanjin catalog.pdf
Features:
- Pure gold wire bonding
- High flux per LED
- resistance to mechanical vibration
- More energy efficient than incandescent and most halogen lamps
- RoHS certification
Technical Parameters:
Electrical optical characteristics of 3030 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red | 620 | --- | 635 | nm | IF=300mA |
| Luminous intensity | Iv | Red | 30 | --- | 40 | LM | IF=300mA |
| Forward voltage | VF | Red | 2.0 | --- | 2.2 | V | IF=300mA |
| Viewing angle | --- | 120 | --- | deg | IF=300mA | ||
| Reverse current | IR | Red | --- | ---- | 5 | uA | IF=300mA |
| Operation Temperature | －40~+85℃ | Size | 3.2*3.0*0.62mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
- Indoor and outdoor commercial light
- LED backlight and SMD type indicator
- LED module and LED strip light
- Decoration light, backlight in dashboards and switches
- Auto lamp, automotive electronics, traffic lights
- Mobile phone, digital camera, flash photoelectric display, backlight display
- LED Taillight, LED Brake Light , Turn light , Daytime Running Light ,License plate lamp ,In-vehicle lighting
Materials:
Company information:
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light
emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering
2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static
production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now
applying for ISO14001 Environmental management system certification. With 18 years development, we
achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products
comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high
starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely
used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other
electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to
customer’s demand. Your inquiry is welcomed , solve your question is our mission. LED light the world, Lanjin
lights your life!
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory?
A1: Yes, we are LED factory in Dongguan city, Welcome to your visiting!
.
Q2: How can I get a quotation from you?
A2: Please kindly leave us messages about your needs, our sales team will reply you in one hour.
Q3: Could you please send me the free sample, so that I could see and check its quality?
A3: Yes. We will provide free samples according to your requirements.
Q4: What about the lead time?
A4: Sample needs about 3 working days. Customized products need 5-7 working days. Mass production 10-15 days
Q5: What payment term do you accept?
A5: We accept T/T, Paypal, Western Union .
Q6. How to proceed an order for the led?
A6:
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
