0805 RGB SMD Long Service Life 2012 Tri Color LED Chip For Indicator

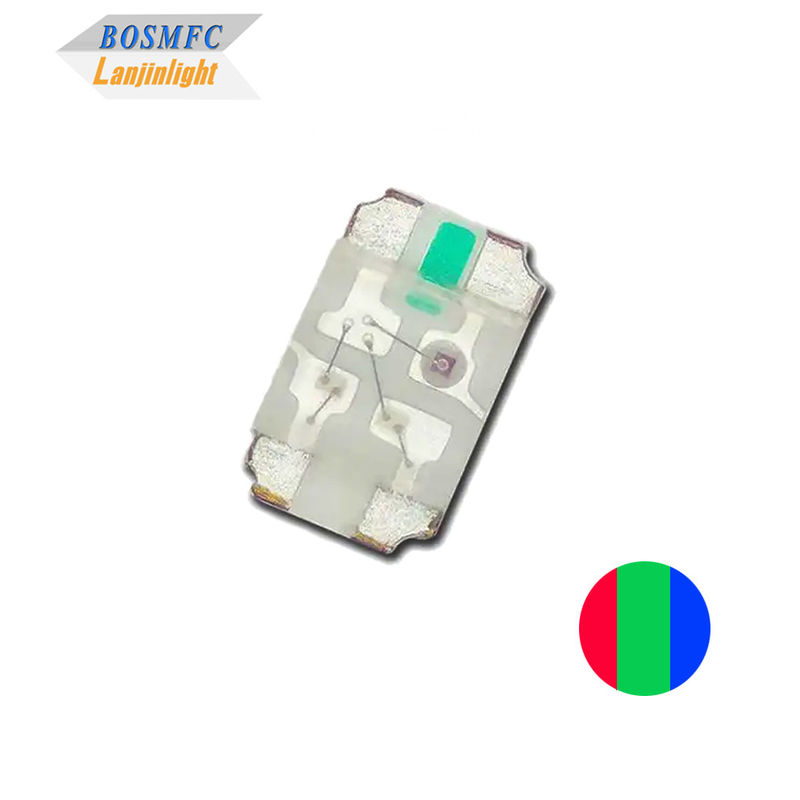

Large Image : 0805 RGB SMD Long Service Life 2012 Tri Color LED Chip For Indicator

Product Details:

Place of Origin:	China
Brand Name:	BOSMFC
Certification:	Rohs, Reach
Model Number:	0805 RGB SMD LED

Payment & Shipping Terms:

Minimum Order Quantity:	3000pcs
Packaging Details:	3000pcs/reel, Reel+Anti-static bag+carton
Delivery Time:	5-15 days
Payment Terms:	T/T,Western Union,paypal
Supply Ability:	500KK/month

Contact Now

0805 RGB SMD Long Service Life 2012 Tri Color LED Chip For Indicator

Description

Application:	Indoor & Outdoor Lighting	Power Dissipation:	60mW
Color:	RGB Light	Wavelength:	620-635 / 525-535 / 466-472 Nm
Luminous Intensity:	160 / 500/ 130 Mcd	Forward Current:	20mA
Forward Voltage:	1.8-2.4/2.8-3.4 /2.8-3.4v	Size:	2.01.251.05mm
Warranty:	3 Years	Chip Brand:	San'an Chip
Package:	3000pcs/reel	Lifetime:	50000h
Operating Temperature:	-40℃~85℃	Reverse Voltage:	5V
Storage Temperature:	-40℃~100℃
Highlight:	0805 RGB SMD LED , Indicator RGB SMD LED , 2012 Tri Color RGB SMD LED

0805 RGB SMD Long Service Life 2012 Tri Color LED Chip For Indicator

High-performance 0805 RGB SMD LED chip designed for reliable indicator applications with exceptional service life and color quality.

Key Features

RoHS Compliant
Wide 120° viewing angle
Low light decay for consistent performance
High lumen output with excellent color rendering
Premium Epistar LED chip technology
Energy-efficient and environmentally friendly

Technical Specifications

Parameter	Symbol	Color	Min	Typ	Max	Unit	Test Condition
Wavelength	λd	Red	620	—	635	nm	IF=20mA
		Green	515	—	530
		Blue	460	—	470
Luminous Intensity	Iv	Red	—	150	—	mcd	IF=20mA
		Green	—	550	—
		Blue	—	140	—
Forward Voltage	VF	Red	1.8	—	2.4	V	IF=20mA
		Green	2.8	—	3.4
		Blue	2.8	—	3.4
Viewing Angle	—	—	—	120	—	deg	IF=20mA
Reverse Current	IR	—	—	—	5	uA	IF=20mA
Operation Temperature	-40°C to +85°C		Size			2.0×1.25×0.8mm
Storage Temperature	-40°C to +100°C		Packing			3000pcs/reel

Applications

Telecommunication, office automation, home appliances, industrial equipment
Mobile phones, digital cameras, flash photoelectric displays, and backlight displays
Automotive lamps and electronics, traffic lights
Entertainment and stage lighting
Decorative lighting, backlighting in dashboards
Full-color flexible LED strip lighting
