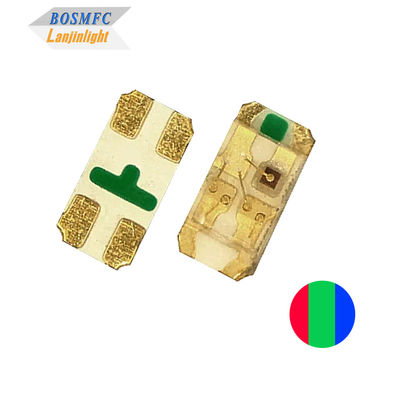

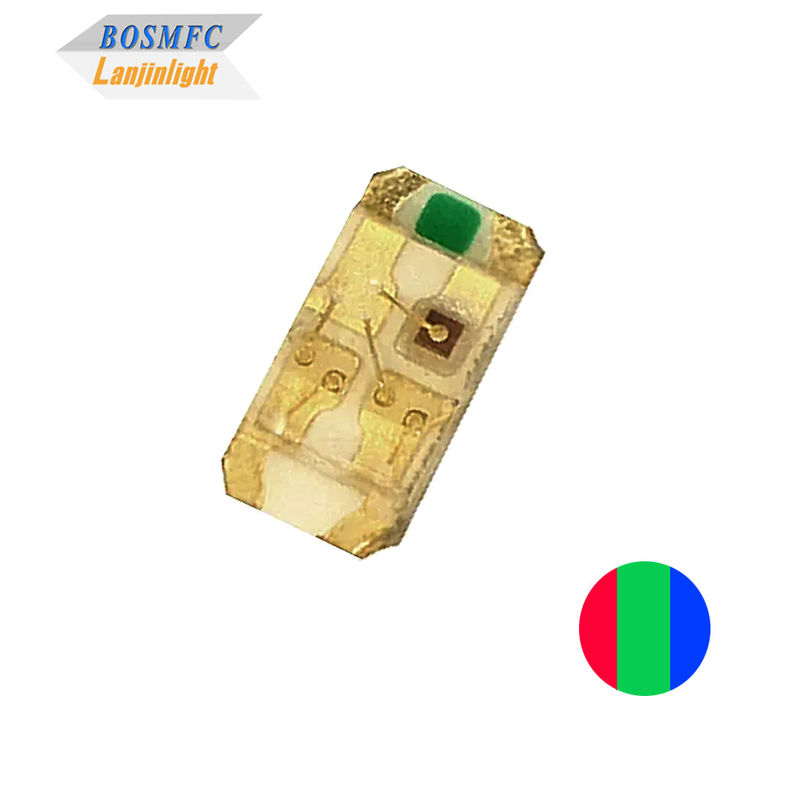

0603 RGB LED Sanan chips 1608 SMD Tri-Color (Red, Green, Blue)
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 0603 RGB SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000pcs |
|---|---|
| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | 60mW |
|---|---|---|---|
| Color: | RGB Light | Wavelength: | 620-630 / 520-530 / 460-472 Nm |
| Luminous Intensity: | 150 / 450/ 120 Mcd | Forward Current: | 20mA |
| Forward Voltage: | 1.8-2.4/2.8-3.4 /2.8-3.4v | Size: | 1.6*0.8*0.6mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 4000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 1608 RGB LED Sanan chips,0603 RGB LED Sanan chips |
||
Product Description
0603 RGB LED Sanan chips 1608 SMD Tri-Color (Red, Green, Blue)
Features:
- RoHS Approved;
- Low light decay.
- High luemens, high color rendering index;
- LED chip: Epistar
- Energy-saving and environmentally friendly
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
620
520 460 |
--- | 630
530 472 |
nm | IF=20mA |
| Luminous intensity | Iv | Red
Green Blue |
150
450 130 |
mcd | IF=20mA | ||
| Forward voltage | VF | Red
Green Blue |
1.8
2.8 2.8 |
--- | 2.4
3.4 3.4 |
V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 1.6*0.8*0.6mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
- Telecommunication, office automation, home appliances, industrial equipment
- Mobile phones, digital cameras, flash photoelectric displays, and backlight displays
- Automotive lamps and electronics, traffic lights
- Entertainment and stage lighting
- Decorative lighting, backlighting in dashboards.
- Full-color flexible led strip lighting
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
