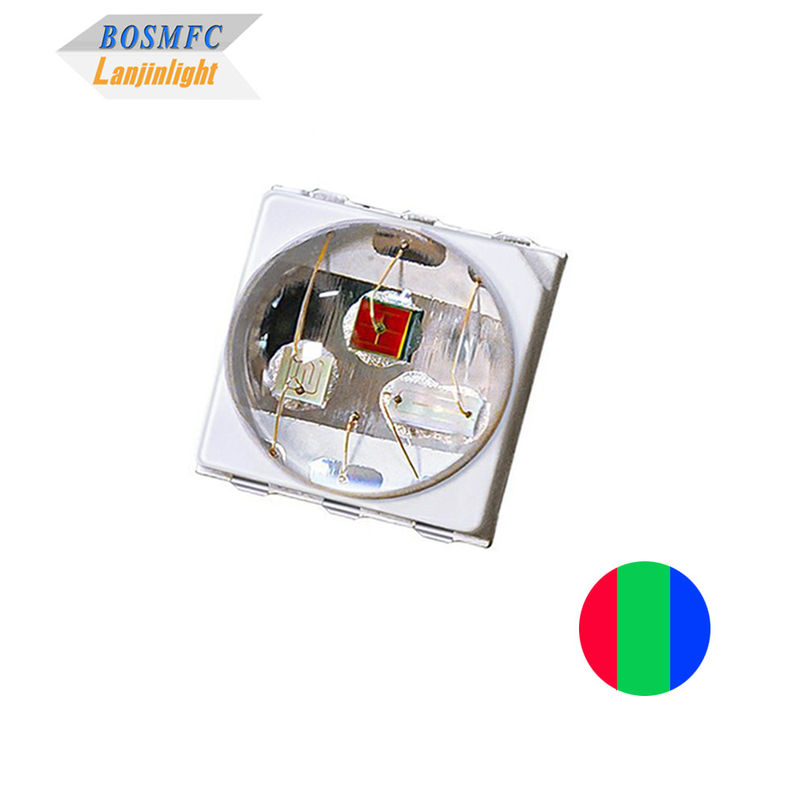

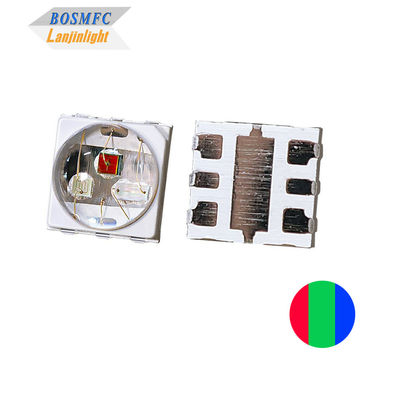

High power 1.5W 3535 RGB LED 3w LED lamp Full Colors 20 years LED factory
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3535 RGB SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000pcs |
|---|---|
| Packaging Details: | Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | 200mW |
|---|---|---|---|
| Color: | RGB Light | Wavelength: | 620-635 / 515-525 / 460-473 Nm |
| Luminous Intensity: | 23/ 38/ 9 LM | Forward Current: | 150mA |
| Forward Voltage: | 1.8-2.4/2.8-3.4 /2.8-3.4v | Size: | 3.2*3.0*0.6mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Lifetime: | 50000h | Operating Temperature: | -40℃~85℃ |
| Reverse Voltage: | 5V | Storage Temperature: | -40℃~100℃ |
| Highlight: | 1.5W RGB LED,3535 RGB LED,20 years RGB LED |
||
Product Description
High power 1.5W 3535 RGB LED 3w LED lamp Full Colors 20 years LED factory
Features:
- Well-known chip brands material
- Energy-saving and environmentally friendly
- Long lifespan
- Efficient heat dissipation
- Low light attenuation
- Easy installation
- Strong anti-static ability
Technical Parameters:
Electrical optical characteristics of 3030 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
620
515 460 |
--- | 635
525 470 |
nm | IF=150mA |
| Luminous intensity | Iv | Red
Green Blue |
23
38 9 |
LM | IF=150mA | ||
| Forward voltage | VF | Red
Green Blue |
1.8
2.8 2.8 |
--- | 2.4
3.4 3.4 |
V | IF=150mA |
| Viewing angle | --- | 120 | --- | deg | IF=150mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=150mA |
| Operation Temperature | －40~+85℃ | Size | 3.7*3.5*1.85mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Applications:
- Auto lights,
- bicycle tail lights,
- medical lights,
- phototherapy lights,
- germicidal lights,
- plant lights, aquarium lights,
- photography lights,
- projection lights
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory?
A1: Yes, we are a professional LED manufacturer in Dongguan city 18 years, specialize in SMD LED, through-hole LED and LED displals.
Q2.Could you please send me the samples for comfirm the quality?
A2: Of course ,We can provide some free samples for our clients comfirm the quality.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.
Q4. How to shipping ?
A4: (1) Normally , it will be shiped out by DHL UPS TNT express or other express for the weight is not too heave and box size is small .
(2) it will be shipping out by air or sea once the weight and size is huge enough.
(3) the shpping way from our clients' advise.
Q5: How to place an order?
A5: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q6: What payment terms are available?
A6: T/T,PayPal, Western Union and Secure Payment.
Q7: What about the lead time?
A7: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
