Product Details:
|
| Application: | Stage Light | Color: | RGBW Light |
|---|---|---|---|
| Wavelength: | 620-635 / 515-525 / 460-473 Nm/CCT6000-8500K | Luminous Intensity: | 180/ 90/ 50 /260 LM |
| Forward Current: | 350mA | Forward Voltage:: | 1.8-2.4/2.8-3.4 /2.8-3.4v/2.8-3.4v |
| Size: | 5.8*6.3*1.3mm | Warranty: | 2 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 1000pcs/reel |
| Lifetime: | 50,000h | Operating Temperature: | -40℃~85℃ |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | High Power RGBW LED Chip,6065 Ceramic SMD LED,Stage Light LED Diode |
||

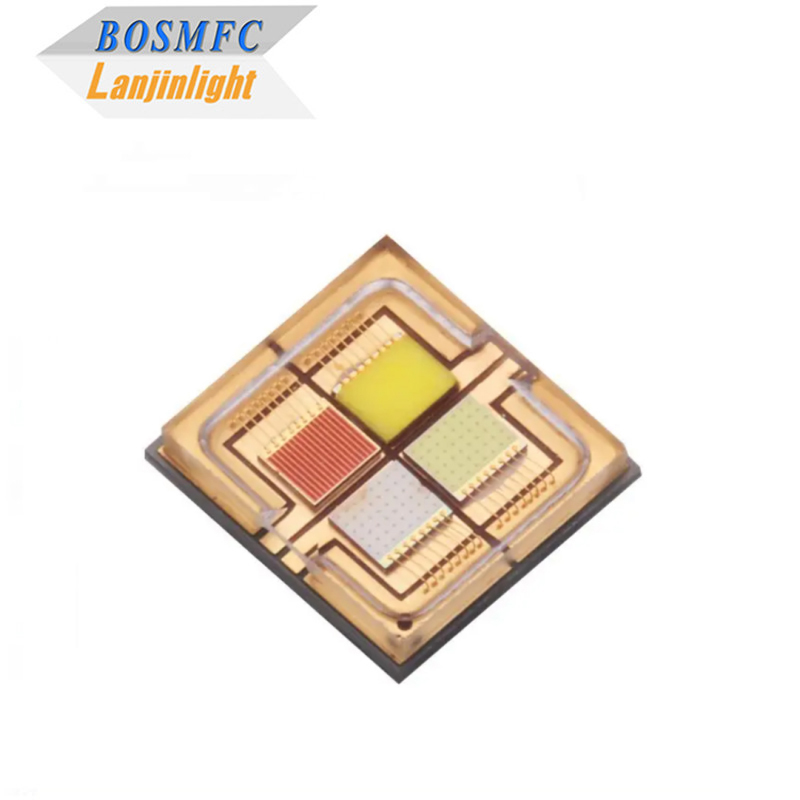

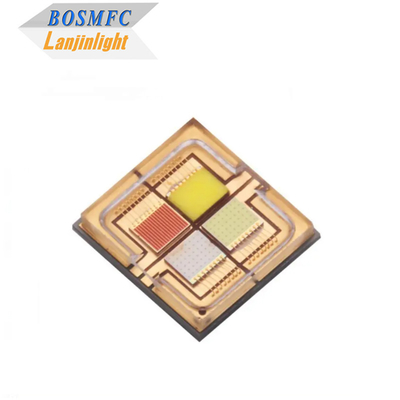

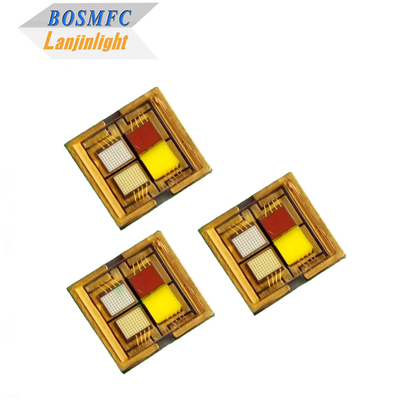

Professional-grade 4-in-1 RGBW LED chip bead diode designed for high-performance stage lighting applications, featuring superior color mixing capabilities and exceptional durability.
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
|---|---|---|---|---|---|---|---|
| Wavelength | λd | Red | 620 | 635 | - | nm | IF=350mA |
| Green | 515 | 525 | - | ||||
| Blue | 460 | 470 | - | ||||
| White | CCT6000K | CCT8500K | - | ||||
| Luminous Intensity | Iv | Red | - | 50 | - | LM | IF=350mA |
| Green | - | 70 | - | ||||
| Blue | - | 25 | - | ||||
| White | - | 110 | - | ||||
| Forward Voltage | VF | Red | 1.8 | - | 2.4 | V | IF=350mA |
| Green | 2.8 | - | 3.4 | ||||
| Blue | 2.8 | - | 3.4 | ||||
| White | 2.8 | - | 3.4 | ||||
| Viewing Angle | - | - | - | 120 | - | deg | IF=350mA |
| Reverse Current | IR | - | - | - | 5 | uA | IF=350mA |
Operation Temperature: -40°C to +85°C
Storage Temperature: -40°C to +100°C
Size: 5.8 × 6.3 × 1.3mm
Packing: 1000pcs/reel
Dongguan Lanjin Optoelectronics Co., Ltd., established in 2005, is a professional manufacturer specializing in light emitting diodes, LED digital displays, SMD LEDs, through-hole LEDs, and LED PCB assembly services. Operating from a 2,500 square meter facility with modern purification, constant temperature, and humidity anti-static production workshops. The company holds ISO9001:2015 Quality Management System certification and is pursuing ISO14001 Environmental Management System certification. With 18 years of development, Lanjin has achieved 2 national invention patents, 12 practical new-type patents, and 2 software invention patents. All products comply with EU RoHS standards. Incorporating advanced manufacturing technology from Japan, Korea, and Western Europe, Lanjin develops high-temperature resistance, long-life LEDs for communication equipment, switching power supplies, decorative lighting, and electronic applications. Committed to "Quality and customer first" principles with customized services available.
Inner Packaging: Anti-static Bag Vacuum Packaging
Outer Packaging: Standard export carton packing
Yes, we welcome sample orders for quality testing. Mixed samples are acceptable, and free samples may be available. We can also create custom samples according to your specifications.
Production typically takes 5-7 days, though exact delivery times may vary depending on order specifics and current production schedules.
All our LED products come with a 2-year warranty.
Quality is our top priority. We implement comprehensive quality control measures throughout the entire production process. Every product undergoes full assembly and rigorous testing before packaging and shipment.
