Side-view 020 SMD LED Green High Brightness LED diode Lighting Heat Dissipation LED for Indicator Lamp Beads

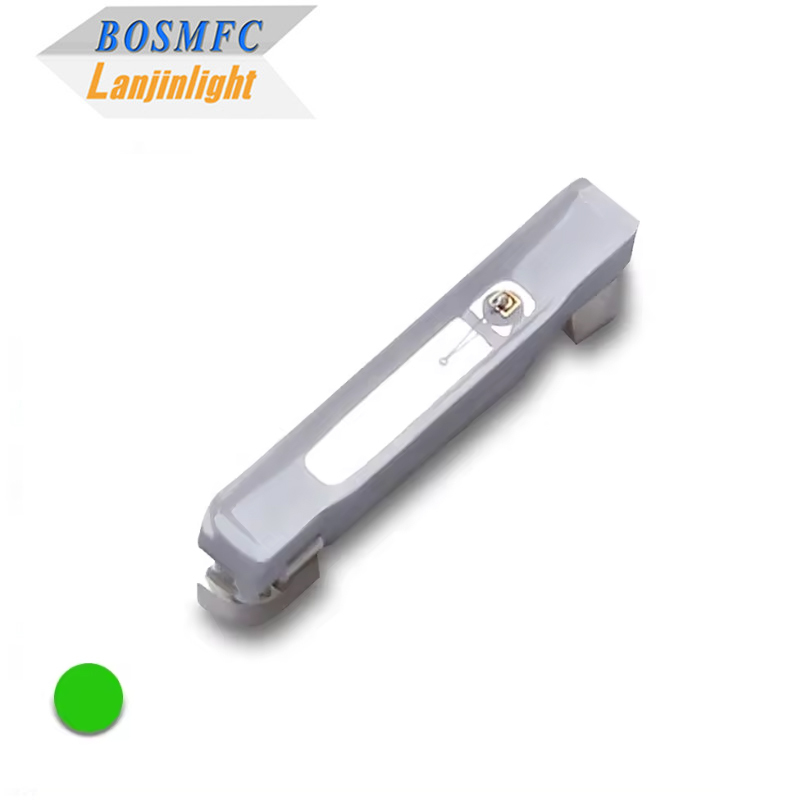

Large Image : Side-view 020 SMD LED Green High Brightness LED diode Lighting Heat Dissipation LED for Indicator Lamp Beads

Product Details:

Place of Origin:	China
Brand Name:	BOSMFC
Certification:	Rohs, Reach
Model Number:	020 SMD LED

Payment & Shipping Terms:

Minimum Order Quantity:	10,000pcs
Packaging Details:	5000pcs/reel, Reel+Anti-static bag+carton
Delivery Time:	5-15 days
Payment Terms:	T/T,Western Union,paypal
Supply Ability:	500KK/month

Contact Now

Side-view 020 SMD LED Green High Brightness LED diode Lighting Heat Dissipation LED for Indicator Lamp Beads

Description

Application:	Indicator	Color:	Green
Wavelength:	520-535nm	Forward Current:	5mA
Forward Voltage:	2.8~3.4v	Size:	3.80.61.0mm
Warranty:	2 Years	Chip Brand:	San'an Chip / Epistar Chip
Package:	5000pcs/reel	Lifetime:	50,000h
Operating Temperature:	-40℃~85℃	Storage Temperature:	-40℃~100℃
Highlight:	Side-view SMD LED diode , High brightness green LED , LED indicator lamp beads

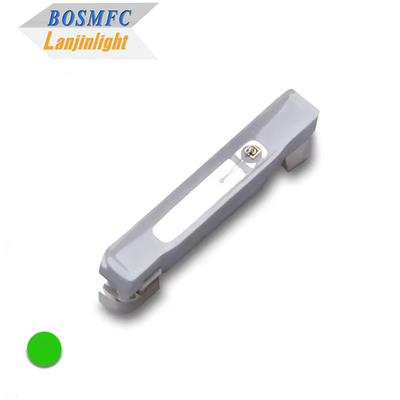

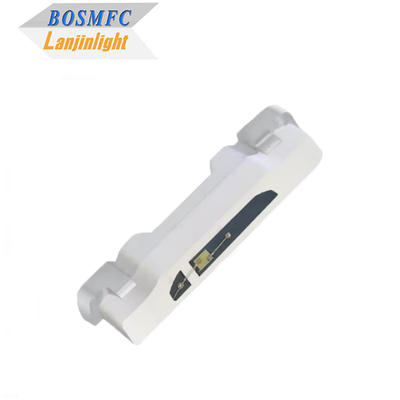

Side-view 020 SMD LED Green High Brightness LED Diode

High-performance green SMD LED with excellent brightness and heat dissipation properties, ideal for indicator lamp applications and various lighting solutions.

Key Features

Pure gold wire bonding for reliable connections
Energy-efficient operation
Extended operational lifespan
Superior heat dissipation capabilities
Minimal light attenuation over time
Easy installation and integration
RoHS certified for environmental compliance

Technical Specifications

Parameter	Symbol	Color	Min	Typ	Max	Unit	Test Condition
Wavelength	λd	Green	520	—	535	nm	IF=20mA
Luminous intensity	Iv	Green	600	—	1200	mcd	IF=20mA
Forward voltage	VF	Green	2.8	—	3.4	V	IF=20mA
Viewing angle			—	120	—	deg	IF=20mA
Reverse current	IR		—	—	5	uA	IF=20mA

Operation Temperature: -40°C to +85°C
Size: 3.8 × 0.6 × 1.0 mm
Storage Temperature: -40°C to +100°C
Packing: 5000 pieces per reel

Applications

Automotive luminous signs and LED handbags
Mobile phones, digital cameras, and flash photoelectric displays
Decorative lighting including dashboard and switch backlighting
LED flexible full-color pixel screens and color clothing
Interior ambient lighting, accent lighting, and decorative applications
LED dynamic advertising displays

Company Information

Dongguan Lanjin Optoelectronics Co., Ltd., established in 2005, is a professional manufacturer specializing in light emitting diodes, LED digital displays, SMD LEDs, through-hole LEDs, and LED PCB assembly services. Operating from a 2,500 square meter facility with modern purification, constant temperature, humidity-controlled, and anti-static production workshops. The company holds ISO9001:2015 Quality Management System certification and is pursuing ISO14001 Environmental Management System certification. With 18 years of development, Lanjin has achieved 2 national invention patents, 12 practical new-type patents, and 2 software invention patents. All products comply with EU RoHS standards and incorporate advanced manufacturing technologies from Japan, Korea, and Western Europe.

Packaging & Shipping

Inner Packaging: Anti-static bag vacuum packaging
Outer Packaging: Standard export carton packing

Frequently Asked Questions

Q: Can I place a sample order?

A: Yes, we welcome sample orders for quality testing. Mixed samples are acceptable, and free samples may be available. We can also create custom samples according to your specific requirements.

Q: What is your delivery time?

A: Production typically takes 5-7 days, though exact delivery times may vary depending on order specifics and current production schedules.

Q: What are your warranty terms?

A: All our LED products come with a 2-year warranty.

Q: How does your factory handle quality control?

A: Quality is our top priority. We implement comprehensive quality control measures throughout the entire production process. Every product undergoes full assembly and rigorous testing before packaging and shipment.
