PLCC6 3528 Chip RGB LED , License Plate Indicator Multi Color SMD LED
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3528 RGB SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000pcs |
|---|---|
| Packaging Details: | 2000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | 60mW |
|---|---|---|---|
| Color: | RGB Light | Wavelength: | 620-635 / 520-530 / 465-475 Nm |
| Luminous Intensity: | 150 / 500/ 250 Mcd | Forward Current: | 20mA |
| Forward Voltage: | 1.8-2.4/2.8-3.4 /2.8-3.4v | Size: | 3.2*2.8*1.9mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 2000pcs/reel | Lifetime: | 60000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 3528 led light,PLCC6 RGB LED Chip,Multi Color SMD LED |
||
Product Description

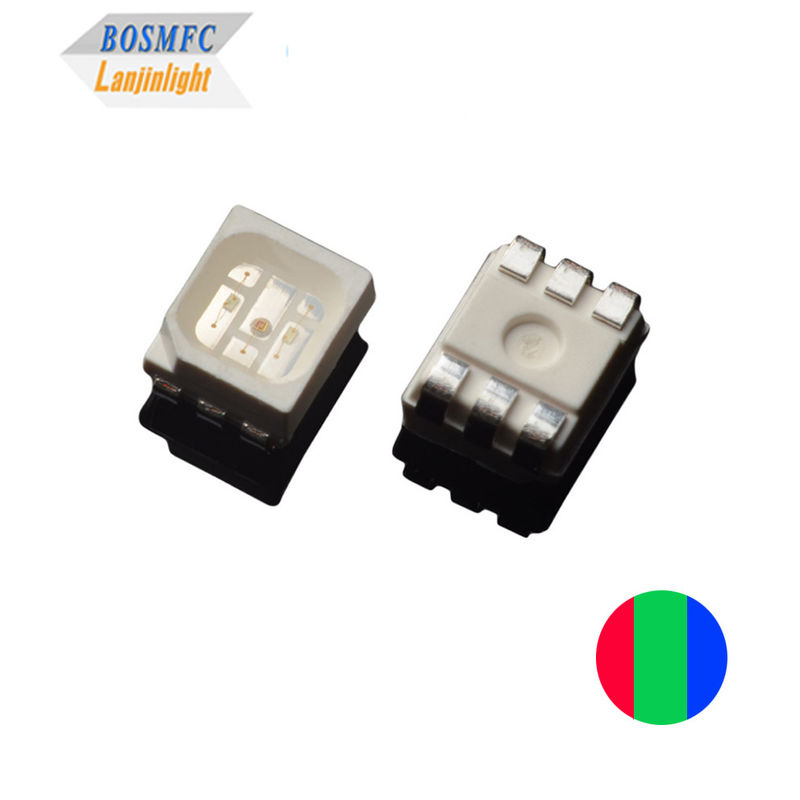

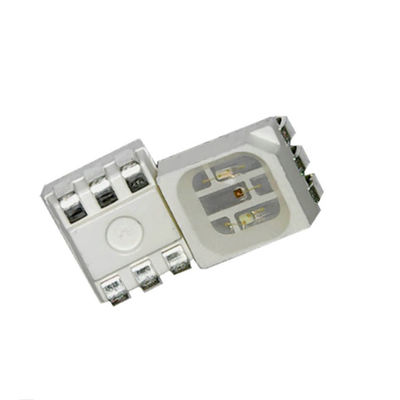

3528 RGB LED PLCC 6 full colors led light diode for license plate indicator
The 3528 RGB LED PLCC 6 is a type of LED diode that emits full-color light. it suitable for applications where vibrant and customizable lighting is desired, such as license plate indicators.
Features:
- Long lifespan
- 99.99% gold wire bonding
- Efficient heat dissipation
- Low-temp & lead-free reflow soldering
- More energy-efficient than incandescent and most halogen lamps
- Strong anti-static ability
Technical Parameters:
Electrical optical characteristics of 3528 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
620
520 465 |
--- | 635
530 475 |
nm | IF=20mA |
| Luminous intensity | Iv | Red
Green Blue |
150 500 250 |
mcd | IF=20mA | ||
| Forward voltage | VF | Red
Green Blue |
1.8
2.8 2.8 |
--- | 2.4
3.4 3.4 |
V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3.2*2.8*1.9mm |
| Storage Temperature | －40~+100℃ | Packing | 2000pcs/reel |
Applications:
- Mechanical keyboard lighting
- Indoor decorative lighting
- Display screens
- Signal and symbol lighting, license plate lamps, and in-vehicle lighting
- Automotive lamps and electronics, including traffic lights
- Full-color strip lighting
- Digital cameras, flash photoelectric displays, and backlight displays
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized. Lanjin focus on OEM & ODM service more than 15 years.
Q2: How can I get a quotation from you?
A2: Please provide us with details about your requirements, including product parameters or application, Our professional team will respond to you within one hour.
Q3: What payment term do you accept?
A3: We accept T/T, Paypal, Western Union .
Q4: What is the lead time for orders?
A4: The lead time depends on the order quantity. Generally, it takes about 10-15 working days. For standard samples, the delivery time could be as short as 3 days.
Q5: What payment terms are available?
A5: We accept T/T, PayPal, Western Union, and Secure Payment.
Q6: How do I process an order?
A6: The order process involves the following steps:
1.Provide us with your requirements or application.
2.We will provide a quotation based on your requirements or suggest suitable options.
3.Confirm the samples and place the order. We will arrange production accordingly.
