5mm Flat Top Through Hole LED Diffused 100 Degree Viewing Angle
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 5mm LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Packaging Details: | 500pcs/bag, Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 550KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power: | 0.06w |
|---|---|---|---|
| Color: | White/red/green/blue/yellow/amber/orange | Wavelength: | 620-625nm / 460-470 / 525-530 / 588-592 / 600-605 / CCT2200K- 12,000K |
| Forward Current: | 20mA | Forward Voltage: | 1.8-2.4/2.8-3.4 |
| Size: | 5mm | Warranty: | 3 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 500pcs/bag |
| Lifetime: | 50000h | Operating Temperature: | -40℃~85℃ |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | Flat Top Through Hole LED,Through Hole LED Diffused,flat led light panel |
||
Product Description

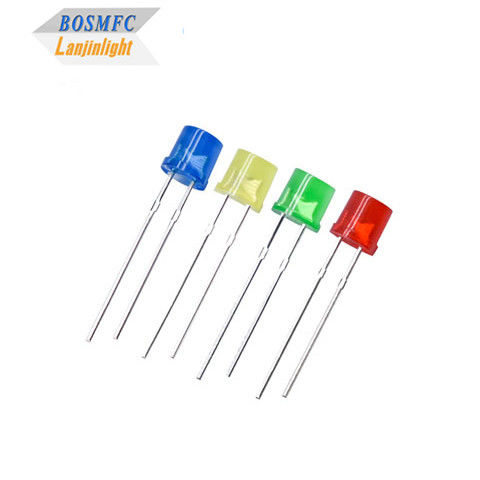

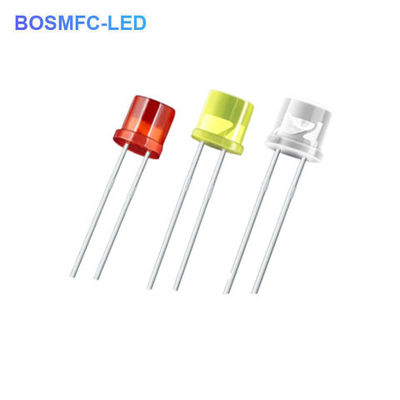

Flat top 5mm through-hole LED color diffused 100 degrees wide viewing angle F5 LED lamps with Rohs certificate
Features:
- Well-known chip material
- More energy efficient than incandescent and halogen lamps
- Low power consumption and high intensity
- Instant light(less than 100ns)
- Low-temp & lead free reflow soldering
- High ESD protection
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue Yellow green Yellow Orange White |
620
520 466 568 584 600 2800K |
--- | 630
530 472 576 596 610 12,000K |
nm |
IF=20mA |
| Luminous intensity | Iv | Red
Green Blue Yellow green Yellow Orange White |
220
2500 300 100 400 300 7000 |
mcd | IF=20mA | ||
| Forward voltage | VF | Red
Green Blue Yellow green Yellow Orange White |
1.8
2.8 2.8 1.8 1.8 1.8 2.8 |
--- | 2.4
3.4 3.4 2.4 2.4 2.4 3.4 |
V | IF=20mA |
| Viewing angle | 80 | --- | 160 | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 5mm |
| Storage Temperature | －40~+100℃ | Packing | 500pcs/bag |
Through-hole LED series: Round LED, oval LED, straw hat LED, helmet LED, square LED, flat top LED,
bullet LED, concave LED, rectangle LED
Applications:
- LED modules and LED strip lights
- Craft flashlights, headlights, Reading lights, LED torch
- Automotive lamps and traffic lights
- LCD TV/monitor backlights
- Decorative lights and indicator lights
- Indoor and outdoor lights
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory?
A1: Yes, we are 18 years LED factory with ISO certificate in Dongguan city, Welcome to your visiting!
Q2: How can I get a quotation from you?
A2: Please provide us with details about your requirements or product applications, Our professional team will respond to you within one hour.
Q3: Can you accept OEM and ODM order?
A3: Yes. We are able to complete your OEM and ODM orders. We have large quantities of led products in stock for normal models. For special models, it will take time to customize them.
Q4: What about the lead time?
A4: In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Q5: Is there any discount for bulk order?
A5: Yes, For bulk and customized products, we will provide discounts according to your order quantity.
Q6. How to proceed an order for led light?
A6: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production after order confirmed.
