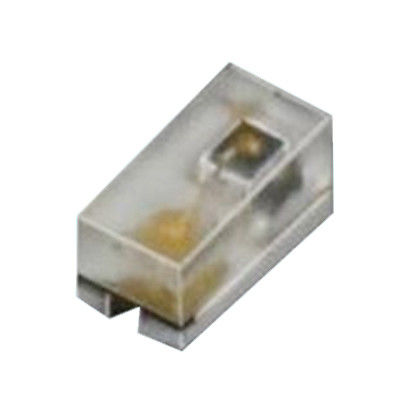

60mW 0402 Side View SMD LED Green Light 1005 size LED chip For Indicator Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | Side view 0402 SMD LED green |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000pcs |
|---|---|
| Packaging Details: | 5000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor/Outdoor Lighting | Power Dissipation: | 60mW |
|---|---|---|---|
| Color: | Green Color | Wavelength: | 520-535nm |
| Luminous Intensity: | 180-380mcd | Forward Current: | 20mA |
| Forward Voltage: | 2.8-3.6v | Size: | 1.0*0.5*0.3mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip |
| Package: | 5000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 0402 SMD LED side view,0402 Green Light LED,0402 led Indicator Light |
||
Product Description

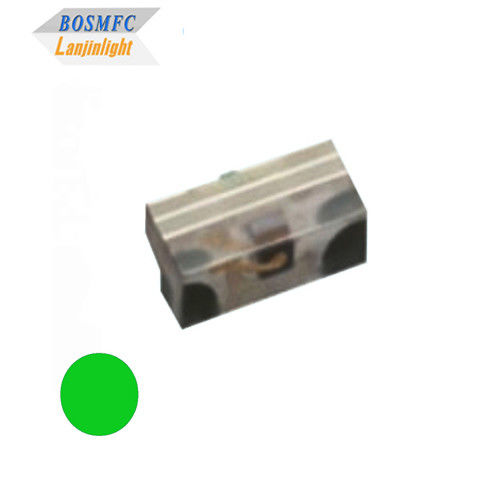

High Bright Side View 0402 SMD LED green light emitting diode chip for indicator lights
Side View 0402 SMD LED---Lanjin catalog.pdf
Features:
- Low energy consumption
- Long life-solid quality reliability
- Available on tape and reel
- RoHS compliant
- Suitable for all SMT assembly methods
- 99.9% pure gold wire
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Green | 520 | --- | 535 | nm | IF=20mA |
| Luminous intensity | Iv | Green | 180 | --- | 380 | mcd | IF=20mA |
| Forward voltage | VF | Green | 2.8 | --- | 3.6 | V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 1.0*0.5*0.3mm |
| Storage Temperature | －40~+100℃ | Packing | 5000pcs/reel |
Applications:
1, Indoor lighting applications
2, Indicator and backlight for all consumer electronics
3, Telecommunication: indicator and back lighting in telephone and fax
4, Light pipe application
5, General use
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: How can I get a quotation from you?
A2: Please kindly leave us messages about your needs,including products and quantity,our sales team will reply you in one hour.
Q3. Can I have a sample order for led light?
A3: Yes, we welcome sample order to test and check quality.
Q4. What about the lead time?
A4:Sample needs 3-5 days, mass production time needs 2-3 weeks for order quantity .
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: What payment terms are available?
A5: T/T,PayPal, Western Union and Secure Payment.
