020 Side View LED Blue lighting Heat Dissipation 3806 SMD LED Chip Types
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | Side view 020 blue SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|
| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor&Outdoor Lighting | Power Dissipation: | 60mW |
|---|---|---|---|
| Color: | Blue Color | Wavelength: | 460-473nm |
| Luminous Intensity: | 100-350mcd | Forward Current: | 20mA |
| Forward Voltage: | 2.8-3.4v | Size: | 3.8*0.6*0.95mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip/ Epistar Chip |
| Package: | 4000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 020 Blue Side View LED,Side View led,3806 SMD LED Chip |
||
Product Description

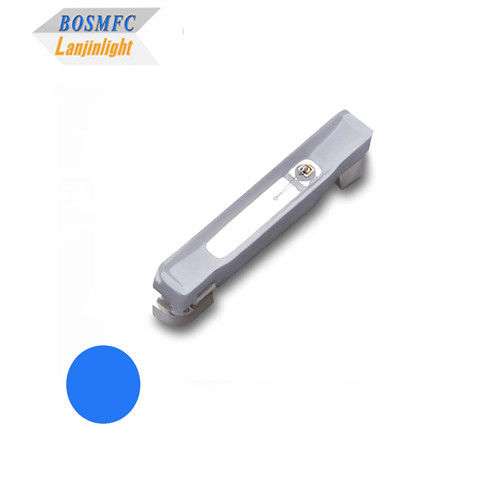

Side View 020 LED chip PLCC High Brightness 3806 small size smd led diode for backlight
Side View 020 LED chip---Lanjin catalog.pdf
Features:
- Pure gold wire bonding
- Energy-saving
- Long lifespan
- Good heat dissipation
- Low light attenuation
- Easy installation
- RoHS certification
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Blue | 460 | --- | 473 | nm | IF=20mA |
| Luminous intensity | Iv | Blue | 100 | --- | 350 | mcd | IF=20mA |
| Forward voltage | VF | Blue | 2.8 | --- | 3.4 | V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3.8*0.6*0.95mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
- Automobile luminous sign, magic LED handbag
- Mobile phone, digital camera, flash photoelectric display
- Decorative lighting, including backlighting in dashboards and switches
- LED flexible full-color pixel screen, LED color clothing
- Interior ambient lighting, accent lighting, and decorative lighting
- LED flexible full-color pixel screen, LED color clothing,LED dynamic advertisement
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
