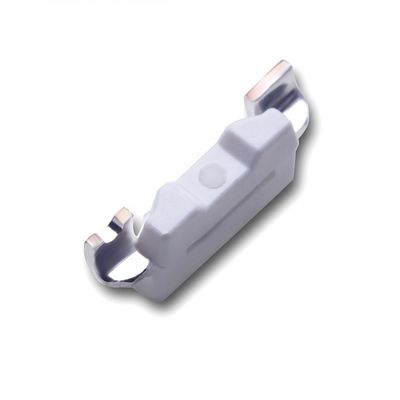

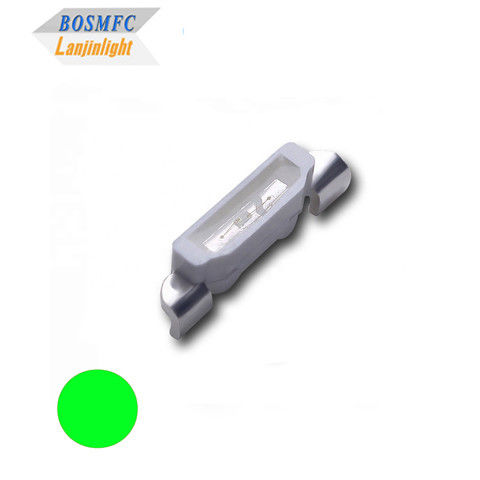

Practical 335 Side View SMD LED 60mW Green Light For Decoration
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | Side view 335 green SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000pcs |
|---|---|
| Packaging Details: | 3000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor&Outdoor Lighting | Power Dissipation: | 60mW |
|---|---|---|---|
| Color: | Green Light | Wavelength: | 520-535nm |
| Luminous Intensity: | 800-1200mcd | Forward Current: | 20mA |
| Forward Voltage: | 2.8-3.4v | Size: | 4.0*0.8*1.4mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip/ Epistar Chip |
| Package: | 3000pcs/reel | Lifetime: | 50,000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 335 Side View SMD LED,335 Green SMD LED Light,335 Light Emitting Diode |
||
Product Description
Good price 335 smd led side view green light smd led for decoration smd led Free samples
335 smd led side view LED---Lanjin catalog.pdf
Features:
- 99.99% gold wire bonding
- Efficient heat dissipation
- Strong anti-static ability
- Meet RoHS Green Product
- Energy-saving and environmentally friendly
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Green | 520 | --- | 535 | nm | IF=20mA |
| Luminous intensity | Iv | Green | 800 | --- | 1200 | mcd | IF=20mA |
| Forward voltage | VF | Green | 1.8 | ---2.4 | V | IF=20mA | |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 4.0*0.8*1.4mm |
| Storage Temperature | －40~+100℃ | Packing | 3000pcs/reel |
Applications:
- Architectural lighting in buildings, bridges, and other architectural structures.
- Mobile phones, digital cameras, flash photoelectric displays, and backlight displays
- Automotive lamps and electronics, including traffic lights
- CONSUMER ELECTRONICS
- Decorative lighting, including backlighting in dashboards and switches
- SMART HOME APPLIANCES
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Can I get some free samples for confirmation?
A: Yes, we welcome samples to check our LED quality and performance.
Q2: What about the lead time?
A: Sample needs about 3-5 working days. Customized products need 5-7 working days. Mass production 15-25 days.
Q3: What payment term do you accept?
A: We accept T/T, Paypal, Western Union .
Q4: How do you ship the goods and how long it will take?
A: Generally we ship the goods to you door to door by DHL, UPS, FEDEX, TNT express.
It will take 2-4 working days. And Air transportation and Sea shipping is also available.
Q5: How do you deal with the LED Failure issue?
A: Our engineer will analyze the failure and find out the failure cause according to the failed
products pictures or the rejected samples from clients. We will compensate a new batch of LED products to you as fast as we could and send them to you if the failure caused by Lanjin.
Our led products are produced in strict quality control system and we will do the inspection before shipment, so the defective rate will be more less than others
