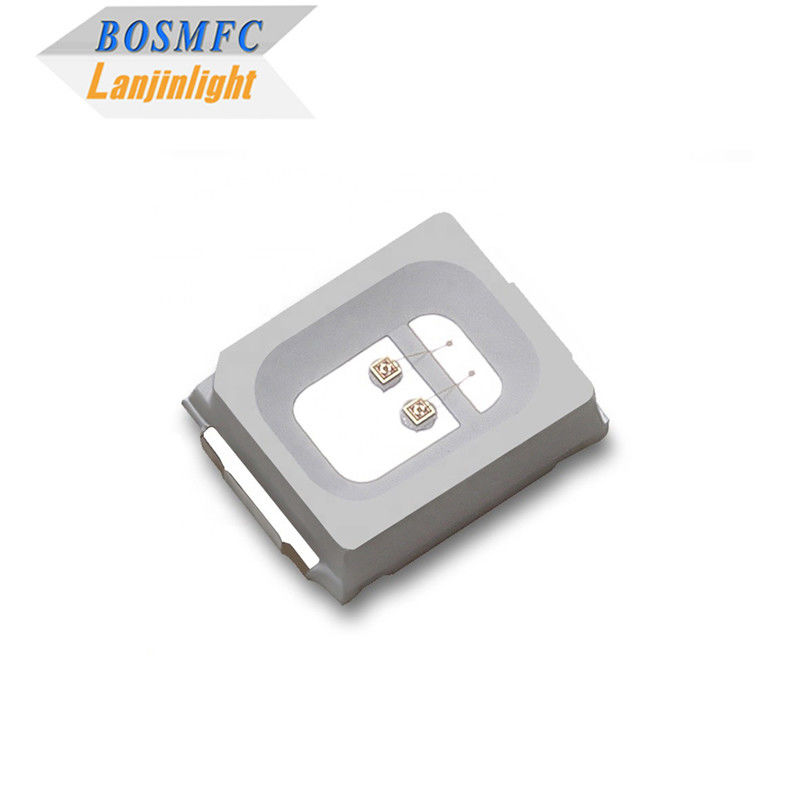

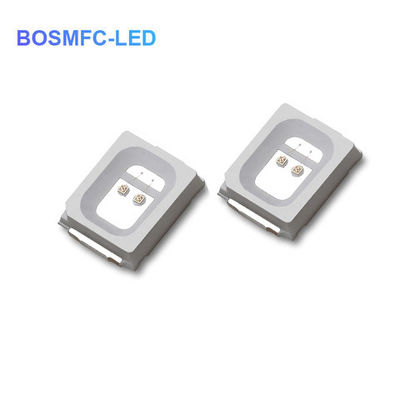

0.5W 940nm IR LED Chip 2835 SMD Multipurpose For Camera Light
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 2835 SMD LED IR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|
| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Power: | 0.2 W | Emitting Color: | Infrared Led Light |
|---|---|---|---|
| Wavelength: | 940nm | Forward Current: | 60mA |
| Forward Voltage: | 1.4-1.7v | Viewing Angle: | 120° |
| Size: | 2.8*3.5*0.8mm | Warranty: | 3 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 4000pcs/reel |
| Highlight: | 0.5W IR LED Chip,940nm IR LED Chip,Camera Light LED IR SMD |
||
Product Description
0.5w ir 940nm 2835 SMD LED infrared led chip for inrared camera light
2835 SMD LED infrared led chip---Lanjin catalog.pdf
The 2835 SMD package ensures easy integration and installation. With a power rating of 0.5W, this LED chip delivers a strong and focused output for enhanced visibility in low-light or nighttime conditions. It is designed to meet the requirements of infrared camera systems, providing reliable and efficient performance.
Features:
- Well-known brand chip materials
- Long life span 60,000 hours
- Maintenance free, easy installation
- Low power consumption, high intensity
- Instant light(less than 100ns)
- RoHS & Reach certification
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Infrared | --- | 940 | --- | nm | IF=200mA |
| Radiant intensity | Ee | Infrared | --- | 100 | --- | mw/Sr | IF=200mA |
| Forward voltage | VF | Infrared | 1.3 | --- | 1.8 | V | IF=200mA |
| Viewing angle | --- | 120 | --- | deg | IF=200mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=200mA |
| Operation Temperature | －40~+85℃ | Size | 2.8*3.5*0.8mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
IR wavelngth: 730nm,740nm, 750nm, 760nm,780nm, 800nm, 810nm, 820nm, 830nm, 840nm, 850nm,880nm, 890m, 940nm, 980nm, 990nm, 1000nm,1050nm, 1100nm, 1550nm 2000nm
- Infrared applied system.
- Counters and sorters
- Encoders
- Floppy disk drive.
- Optoelectronic switch
- Video camera, Tape and card readers
- Position sensors
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years in China, well come to your visting!
Q2: Could you please send me the free sample, so that I could see and check its quality?
A2: Yes. We could offer free samples 1-50 pcs.
Q3: What about the lead time?
A3: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Q4: Can you provide customization and OEM service?
A4: Yes, we offer customization and OEM service, please tell us your requirements clearly.
Q5: Do you offer guarantee for the products?
A5: Yes,We offer 1-3 years warranty to your product.
Q6. How to proceed an order for led light?
A6: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
