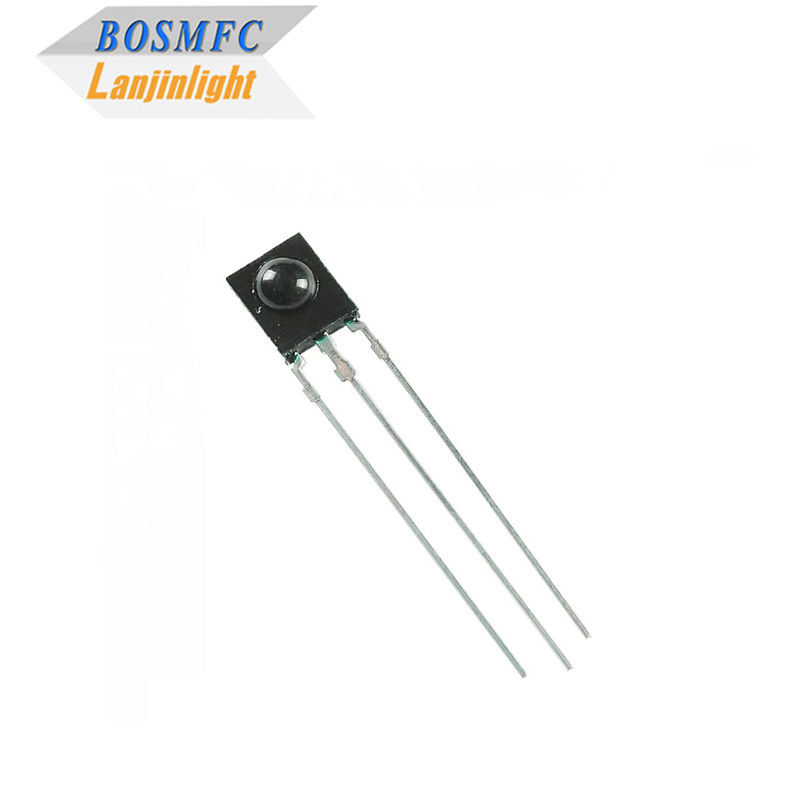

38kHz IR LED Chip Receiver 6.8x6.0mm B0038YCME For Remote Control Systems
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, reach |
| Model Number: | 0038 IR receiver |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 500pcs/bag |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK pcs/ month |
|
Detail Information |
|||
| Forward Voltage: | 3-5v | Viewing Angle: | 35 |
|---|---|---|---|
| Lifespan: | 50,000h | Operating Temperature: | -40℃~+85℃ |
| Storage Temperature: | -40℃~+100℃ | ||
| Highlight: | IR LED,ir LED receiver,0038 ir LED |
||
Product Description

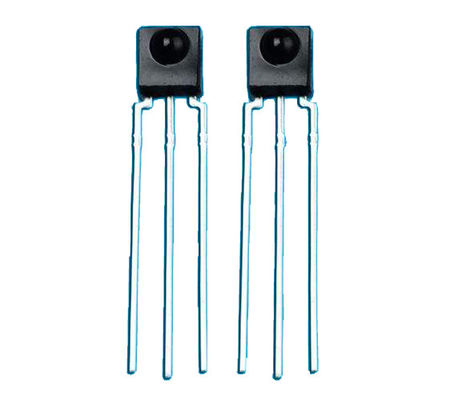

IR Receiver 38 kHz Infrared Receiver LED B0038YCME for Remote Control Systems, 6.8*6.0mm IR LED
The B0038YCME is a 38 kHz infrared receiver LED designed for remote control systems. It features a compact size with dimensions of 6.8 by 6.0 millimeters. This IR receiver LED is specifically designed to receive signals transmitted at a frequency of 38 kHz, which is a common frequency used in infrared remote control applications. It is commonly used in various electronic devices that utilize remote control functionality, such as televisions, DVD players, and set-top boxes. The B0038YCME provides reliable and accurate reception of infrared signals, making it an essential component in remote control systems.
Features:
- 99.99% gold wire bonding
- Long lifespan
- Good heat dissipation
- high intensity, uniform illumination
- Superior ESD protection
- RoHS certification
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Test condition | Min | Typ | Max | Unit |
| Working current | Icc | Iin-0uA, Vcc=3V
Iin-0uA, Vcc=5V |
--- | 0.3
0.4 |
0.7
0.9 |
mA |
| Receiving distance | L | 13 | 18 | M | ||
| Receiving angle | θ1/2 | EV=200+50LUX range attenuation 1/2 | +-35 | Deg | ||
| Carrier frequency | f. | --- | 38 | --- | KHz | |
| BPF width | fbw | -3Db band width | 3.5 | 6.0 | 8.5 | KHz |
| Low level output | Vol | Isink=2.5mA | --- | 0.2 | 0.4 | V |
| High level output | Voh | Vcc=3V
Vcc=5V |
2.7
4.7 |
3.0
5.0 |
--- | V |
Applications:
IR wavelngth: 730nm,740nm, 750nm, 760nm,780nm, 800nm, 810nm, 820nm, 830nm, 840nm, 850nm,880nm, 890m, 940nm, 980nm, 990nm, 1000nm,1050nm, 1100nm, 1550nm 2000nm
- Optical switch
- Light detecting portion ofremote control
- AV instruments such as Audio,TV,VCR,CD,MD,etc
- Home appliances such as Air-conditioner, Fan , etc.
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: How can I get a quotation from you?
A2: Please kindly leave us messages about your needs,including products and quantity,our sales team will reply you in one hour.
Q3. Can I have a sample order for led light?
A3: Yes, we welcome sample order to test and check quality.
Q4. What about the lead time?
A4:Sample needs 3-5 days, mass production time needs 2-3 weeks for order quantity .
Q5. How do you ship the goods and how long does it take to arrive?
A5: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
