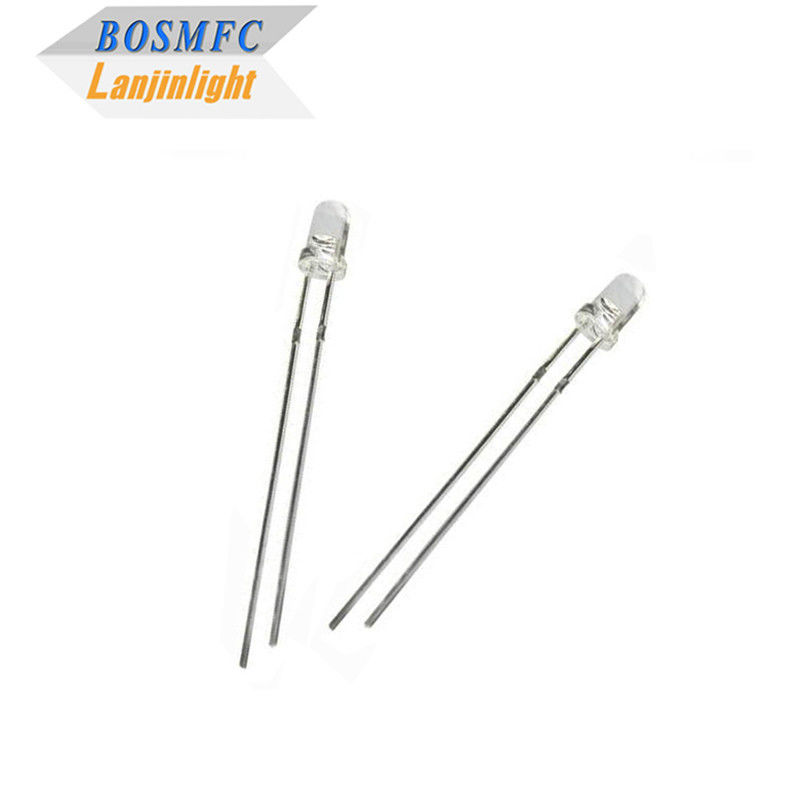

1050nm F3 Far Infrared LED Heat Dissipation , Reflection Detector 3mm IR LED
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, reach |
| Model Number: | 3mm dip LED IR 1050nm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 1000pcs/bag |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK pcs/ month |
|
Detail Information |
|||
| Forward Voltage: | 0.8-1.15V | Wavelength: | 1050nm |
|---|---|---|---|
| Viewing Angle: | 30° | Lifespan: | 50,000h |
| Operating Temperature: | -40℃~+85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~+100℃ | ||
| Highlight: | 1050nm Far Infrared LED,Far Infrared LED Heat Dissipation,Detector 3mm IR LED |
||
Product Description

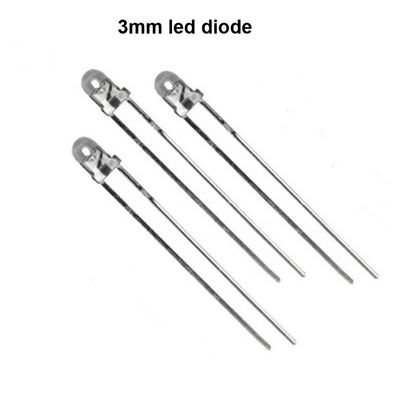

China LED supplier 3mm IR LED 1050nm F3 far infrared led reflection and detector control field
3mm IR LED with a wavelength of 1050nm, specifically designed for the far infrared spectrum. This IR LED is suitable for applications in the reflection and detection control field.
Features:
- Pure gold wires bonding
- Long life span 50,000 hours
- Pb free and radiationless
- Low-temp & lead free reflow soldering
- Efficient heat dissipation
- Compliant with the RoHS standard
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Infrared | --- | 1050 | --- | nm | IF=20mA |
| Radiant intensity | Ee | Infrared | --- | 6.0 | --- | mw/Sr | IF=20mA |
| Forward voltage | VF | Infrared | 0.8 | --- | 1.3 | V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/bag |
Applications:
IR wavelngth: 730nm,740nm, 750nm, 760nm,780nm, 800nm, 810nm, 820nm, 830nm, 840nm, 850nm,880nm, 890m, 940nm, 980nm, 990nm, 1000nm,1050nm, 1100nm, 1550nm 2000nm
- Infrared applied system.
- Counters and sorters
- Industrial equipment
- Optoelectronic switch
- Video camera, Tape and card readers
- Position sensors
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years in China, providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I get some samples for tests?
A2: Yes, we provide free samples 1-50pcs to check LED quality.
Q3: Is there any discount for bulk order?
A3: Yes, for bulk order, we can provide discounts according to order quantity.
Q4: What chip you usually use for your led?
A4: Basically, we use Sanan and Epistar chip. We will choose suitable chip for different leds.
Q5: How long of your lead time?
A5:5-7 days for samples, 2-4 weeks for mass order
Q5. How to proceed an order for the led?
A5: for some products, you can buy on our web directly; otherwise, please contact our sales:
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
