3mm dip led Green Light LED Light Emitting Diode 5V Wavelength 520nm-535nm
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3mm LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 1000pcs/bag, Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 550KK/month |
|
Detail Information |
|||
| Application: | Indoor/Outdoor Lighting | Power: | 0.06w |
|---|---|---|---|
| Color: | Green Light | Wavelength: | 520-535nm |
| Forward Current: | 20mA | Forward Voltage: | 2.8-3.4v |
| Size: | 3mm | Warranty: | 2 Years |
| Chip Brand: | San'an Chip/ Epistar Chip | Package: | 1000pcs/bag |
| Lifetime: | 50,000h | Operating Temperature: | -40℃~85℃ |
| Reverse Voltage: | 5V | Storage Temperature: | -40℃~100℃ |
| Highlight: | 3mm DIP LED,green led 3mm,Outdoor LED Lighting |
||
Product Description

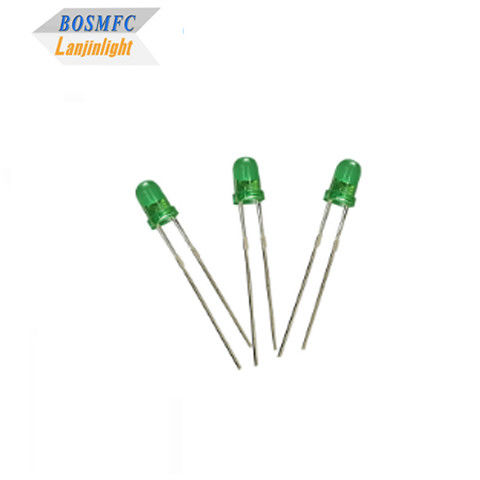

best price high luminous LED Diode 3mm through-hole LED with green diffused lens
LED Diode 3mm through-hole LED---Lanjin catalog.pdf
Features:
- Long lifespan 50,000 hours
- 99.99% gold wire bonding
- Low-temp & lead free reflow soldering
- Maintenance free, easy installation
- More energy efficient than incandescent and halogen lamps
- Instant light(less than 100ns)
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue Yellow green Yellow Orange White |
620
520 466 568 584 600 2800K |
--- | 630
530 472 576 596 610 12,000K |
nm |
IF=20mA |
| Luminous intensity | Iv | Red
Green Blue Yellow green Yellow Orange White |
200
2000 250 80 300 200 2500 |
mcd | IF=20mA | ||
| Forward voltage | VF | Red
Green Blue Yellow green Yellow Orange White |
1.8
2.8 2.8 1.8 1.8 1.8 2.8 |
--- | 2.4
3.4 3.4 2.4 2.4 2.4 3.4 |
V | IF=20mA |
| Viewing angle | --- | 30 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/bag |

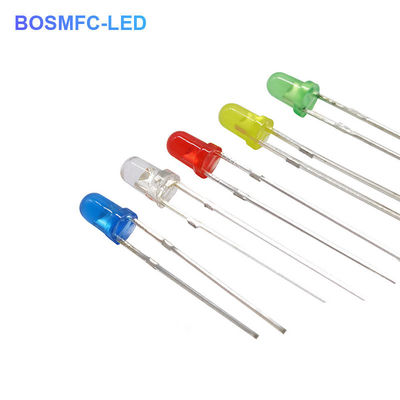

Through-hole LED series: Round LED, oval LED, straw hat LED, helmet LED, square LED, flat top LED,
bullet LED, concave LED, rectangle LED
Applications:
- Architectural lighting in buildings and other architectural structures.
- Mobile phones, digital cameras, flash photoelectric displays.
- Automotive lamps and electronics , traffic lights
- Entertainment and stage lighting
- Decorative lighting, indicator lights
- Indoor and outdoor commercial light
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer of SMD LED, through-hole LED and digital LED display, providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I get some samples for tests?
A2: Yes, we welcome sample order to test and evaluate our LED quality.
Q3: Is there any discount for bulk order?
A3: Yes, we provide wholesale pricing for bulk orders and customized products.
Q4: How to choose LED light source ?
A4: Lumens(LM), light efficency(LM/W), life span((hrs) are very important factors when choosing LED light source. The higher values, the better performance. Additionaly, brand of LED chip, LED frame and other materials will influence the product reliability.
Q5: How to process the order?
A5: 1. Let us know your requirements or application.
