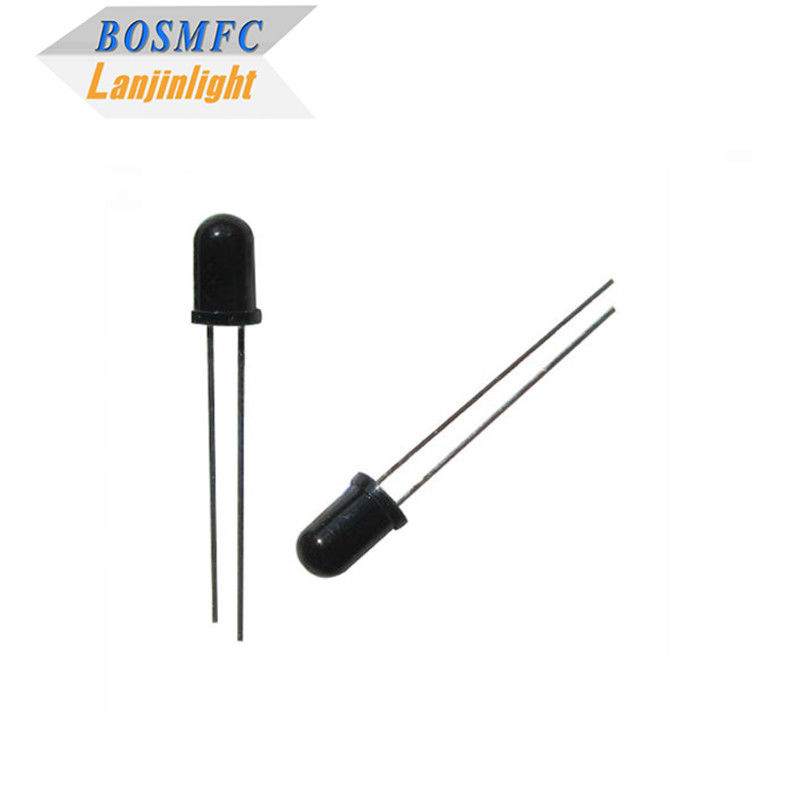

Anti Static IR Emitter Receiver , 5mm 940nm IR LED And Phototransistor
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, reach |
| Model Number: | 5mm dip LED IR 940nm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 1000pcs/bag |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK pcs/ month |
|
Detail Information |
|||
| Size: | 5mm | Forward Voltage: | 1.3V-1.6V |
|---|---|---|---|
| Wavelength: | 850nm/940nm | Viewing Angle: | 30° |
| Lifespan: | 60,000h | Operating Temperature: | -40℃~+85℃ |
| Reverse Voltage: | 5V | Storage Temperature: | -40℃~+100℃ |
| Highlight: | Anti Static IR Emitter Receiver,IR Emitter Receiver 5mm,940nm IR LED And Phototransistor |
||
Product Description

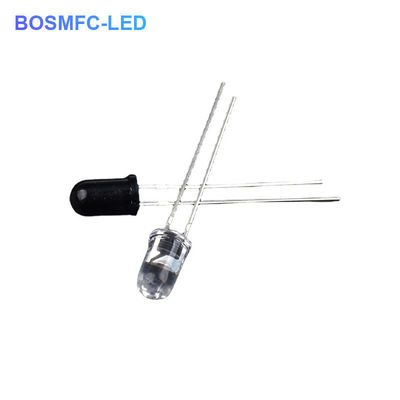

5mm IR LED Photo Transistor 940nm Infrared Dip Led Diode IR Emitter Receiver Photosensitive Tube
5mm Infrared Dip Led Diode---Lanjin catalog.pdf
5mm through-hole IR LED specifically designed for infrared thermometer applications. This LED emits infrared light at multiple wavelengths, including 850nm, 890nm, 940nm, and 980nm. It is suitable for use in infrared thermometers where accurate temperature measurement is required. The through-hole design allows for easy mounting on circuit boards or other electronic devices.
Features:
- Pure gold wires bonding
- Long life span
- Pb free and radiationless
- Efficient heat dissipation
- Strong anti-static ability
- Energy-saving
- RoHS compliant
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Infrared | --- | 940 | --- | nm | IF=20mA |
| Radiant intensity | Ee | Infrared | --- | 20 | --- | mw/Sr | IF=20mA |
| Forward voltage | VF | Infrared | 1.3 | --- | 1.7 | V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 5mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/bag |
Applications:
IR wavelngth: 730nm,740nm, 750nm, 760nm,780nm, 800nm, 810nm, 820nm, 830nm, 840nm, 850nm,880nm, 890m, 940nm, 980nm, 990nm, 1000nm,1050nm, 1100nm, 1550nm 2000nm
- Infrared applied system.
- Counters and sorters
- Floppy disk drive.
- Optoelectronic switch
- Video camera, Tape and card readers
- Position sensors
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized as customer's requirements.
Q2: How can I get a quotation from you?
A2: Please provide us with detailed requirements or pplication, Our sales team will respond to you in one hour.
Q3: What payment terms do you accept?
A: We accept T/T, Paypal, Western Union .
Q4. Can I have a sample order for led?
A4: Yes, we welcome sample order to test . Mixed samples are acceptable.
Q5. What about the lead time?
A5:Sample needs 3-5 days, mass production time needs 2-3 weeks .
Q6: How do I process an order?
A6: The order process involves the following steps:
1.Provide us with your requirements or application.
2.We will provide a quotation based on your requirements.
3.Confirm the samples and place order. We will arrange production .
