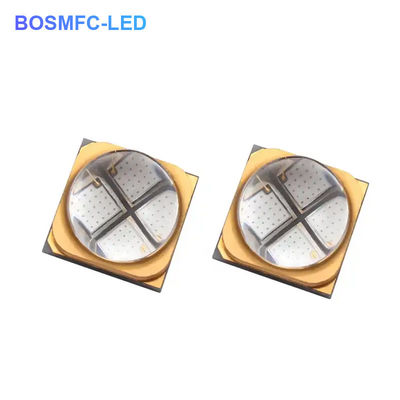

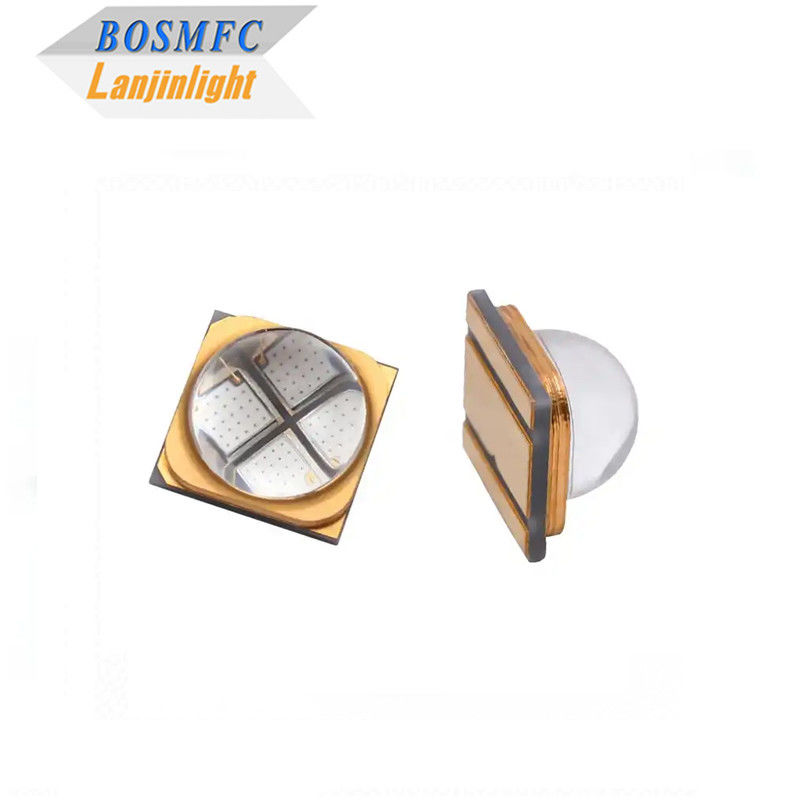

10W UVA UV LED Chip 6565 6868 High Power 365nm 385nm 395nm 405nm For Printer
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, reach |
| Model Number: | UVA 6565 SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | 800pcs/reel |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 200KK pcs/ month |
|
Detail Information |
|||
| Color: | UVC Light | Wavelength: | 365-415nm |
|---|---|---|---|
| Forward Voltage: | 6-8V | Viewing Angle: | 120° |
| Lifespan: | 50,000hrs | Operating Temperature: | -40~85℃ |
| Storage Temperature: | -40~100℃ | ||
| Highlight: | 10W UV LED Chip,UV LED Chip 6565,Printer High Power LED UV |
||
Product Description
China LED factory sell 10w high power led 6565 UV 365nm 385nm 6868 smd UVA led 395nm 405nm for printer
10w high power led 6565 UV LED---Lanjin catalog.pdf
The 6565 high-power LED emits UV light at wavelengths of 365nm and 385nm. This LED is designed to deliver a high level of power output and is suitable for applications that require UV light within these specific wavelengths.
The 6868 SMD UVA LED emits UV light at wavelengths of 395nm and 405nm. This LED is of the surface-mounted device (SMD) type and is commonly used in various applications, including printers. It is specifically designed to emit UVA light, which is useful in certain printing processes.
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Dominant Wavelength | λd | UV | 365 | --- | 415 | nm | IF=1400mA |
| Power dissipation | Pt | UV | 8 | --- | 10 | W | IF=1400mA |
| Forward voltage | VF | UV | 5 | --- | 8 | V | IF=1400mA |
| Viewing angle | --- | 120 | --- | deg | IF=1400mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=1400mA |
| Operation Temperature | －40~+85℃ | Size | 6.5*6.5*4.6mm |
| Storage Temperature | －40~+100℃ | Packing | 800pcs/bag |
Applications:
- Printing and Glue Curing
- Plant Grouth Light Source
- Mosquito and Insect Trapping
- Fluorescent Lighting
- Jewelry and Jade Detection
- MedicalDetection and Nail Enhancement
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Do you provide OEM and ODM services?
A1: Yes, we offer both OEM and ODM services. We can customize products according to your specific requirements.
Q2. How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very
soon (mostly within 6 hours)
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4: How do you ship the goods and how long does delivery take?
A4: We usually ship via DHL, UPS, FedEx, or TNT for faster delivery, which takes approximately 3-5 days to arrive. Airline and sea shipping options are also available.
Q5. How to proceed an order for the led?
A: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
