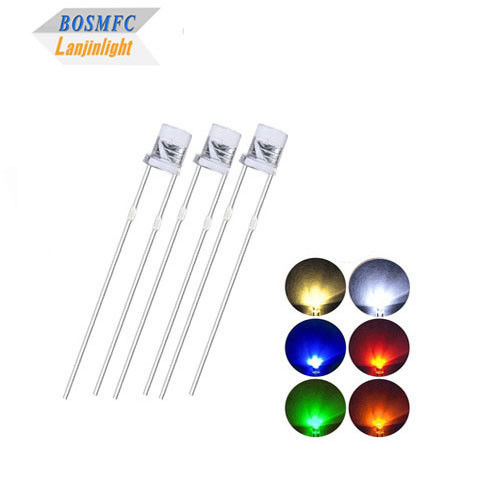

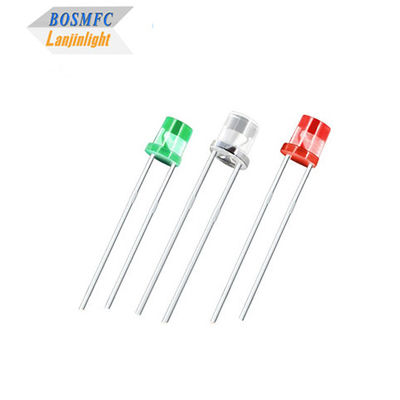

Flat top water clear lens 5mm Red , green, blue Multifunctional 0.06W Practical Light Diode
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 5mm flat top LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 1000pcs/bag, Anti-static bag+carton |
| Delivery Time: | 5-16 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 550KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power: | 0.06w |
|---|---|---|---|
| Color: | Red , Green, Blue | Wavelength: | 620-625nm, 515-525nm, 460-470nm |
| Forward Current: | 20mA | Forward Voltage: | 1.8-2.4v/2.8-3.6v |
| Size: | 5mm | Warranty: | 2 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 1000pcs/bag |
| Lifetime: | 60000h | Operating Temperature: | -40℃~85℃ |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | Flat Top LED,5mm led lens,Multifunctional Flat Top LED |
||
Product Description
Flat top water clear lens 5mm Red , green, blue Multifunctional 0.06W Practical Light Diode
Features:
- 99.99% gold wire bonding
- Long life span 50,000 hours
- Good heat dissipation
- Low-temp & lead free reflow soldering
- Instant light(less than 100ns)
- RoHS certification
- High ESD protection
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue Yellow green Yellow Orange White |
620
520 466 568 584 600 2800K |
--- | 630
530 472 576 596 610 12,000K |
nm |
IF=20mA |
| Luminous intensity | Iv | Red
Green Blue Yellow green Yellow Orange White |
220
2500 300 100 400 300 7000 |
mcd | IF=20mA | ||
| Forward voltage | VF | Red
Green Blue Yellow green Yellow Orange White |
1.8
2.8 2.8 1.8 1.8 1.8 2.8 |
--- | 2.4
3.4 3.4 2.4 2.4 2.4 3.4 |
V | IF=20mA |
| Viewing angle | 90 | --- | 110 | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 5*5*7mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/bag |
Through-hole LED series: Round LED, oval LED, straw hat LED, helmet LED, square LED, flat top LED,
bullet LED, concave LED, rectangle LED
Applications:
- LED modules and LED strip lights
- Craft flashlights, headlights, Reading lights, LED torch
- Automotive lamps and traffic lights
- LCD TV/monitor backlights
- Decorative lights and indicator lights
- Indoor and outdoor lights
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years in China, providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I get some samples for tests?
A2: Yes, we welcome sample order to test and evaluate our LED quality.
Q3: What about the lead time?
A3: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Q4: What chip you usually use for your led?
A4: Basically, we use Sanan and Epistar chip. We will choose suitable chip for different leds.
Q5: What payment terms are available?
A5: T/T,PayPal, Western Union and Secure Payment.
Q6. How to proceed an order for led light?
A6: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
