5mm dip LED Yellow color diffussed Multi Function Practical round top

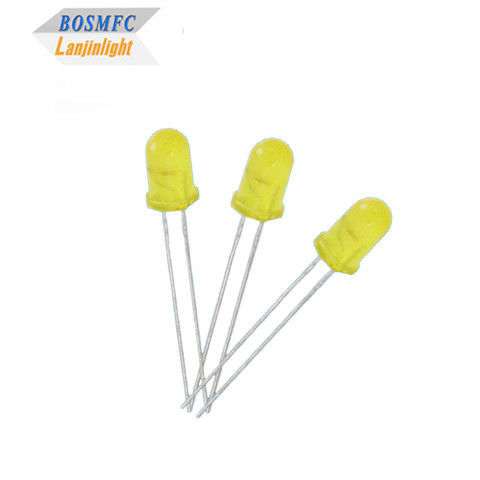

Large Image : 5mm dip LED Yellow color diffussed Multi Function Practical round top

Product Details:

Place of Origin:	China
Brand Name:	BOSMFC
Certification:	Rohs, Reach
Model Number:	257mm LED

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Packaging Details:	1000pcs/bag, Anti-static bag+carton
Delivery Time:	5-16 days
Payment Terms:	T/T, Western Union, paypal
Supply Ability:	550KK/month

Contact Now

5mm dip LED Yellow color diffussed Multi Function Practical round top

Description

Application:	Indoor & Outdoor Lighting	Power:	0.06w
Color:	Yellow Light	Wavelength:	585-595nm
Forward Current:	20mA	Forward Voltage:	1.8-2.4v
Size:	5mm	Warranty:	3 Years
Chip Brand:	San'an Chip	Package:	1000pcs/bag
Lifetime:	50000h	Operating Temperature:	-40℃~85℃
Storage Temperature:	-40℃~100℃
Highlight:	5mm dip LED , F5 LED , 5mm Round Top LED

5mm dip LED Yellow color diffussed Multi Function Practical round top

Features:

99.99% gold wire bonding
Long lifespan
Good heat dissipation
high intensity, uniform illumination
Superior ESD protection
RoHS certification

Technical Parameters:

Electrical optical characteristics :(Ta=25°C)

Parameter	Symbol	Color	Min	Typ	Max	Unit	Test Condition
Wavelength	λd	Red Green Blue Yellow green Yellow Orange White	620 520 466 568 584 600 2800K	---	630 530 472 576 596 610 12,000K	nm	IF=20mA
Luminous intensity	Iv	Red Green Blue Yellow green Yellow Orange White		220 2500 300 100 400 300 7000		mcd	IF=20mA
Forward voltage	VF	Red Green Blue Yellow green Yellow Orange White	1.8 2.8 2.8 1.8 1.8 1.8 2.8	---	2.4 3.4 3.4 2.4 2.4 2.4 3.4	V	IF=20mA
Viewing angle			80	---	160	deg	IF=20mA
Reverse current	IR		---	----	5	uA	IF=20mA

Operation Temperature	－40~+85℃	Size	5mm
Storage Temperature	－40~+100℃	Packing	500pcs/bag

Through-hole LED series: Round LED, oval LED, straw hat LED, helmet LED, square LED, flat top LED,

bullet LED, concave LED, rectangle LED

5mm dip LED Yellow color diffussed Multi Function Practical round top 0

Applications:

LED modules and LED strip lights
Craft flashlights, headlights, Reading lights, LED torch
Automotive lamps and traffic lights
LCD TV/monitor backlights
Decorative lights and indicator lights
Indoor and outdoor lights

Materials:

5mm dip LED Yellow color diffussed Multi Function Practical round top 1

Company information:

Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.

Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.

Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.

Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!

5mm dip LED Yellow color diffussed Multi Function Practical round top 2

Packing and Shipping:

Inner packaging: Anti-static Bag Vacuo Packaging

Outer packaging: Standard export carton packing.

5mm dip LED Yellow color diffussed Multi Function Practical round top 3

5mm dip LED Yellow color diffussed Multi Function Practical round top 4

FAQ:

Q1. What chip you usually use for your led?

A: Basically, we use Sanan and Epistar chip. We will choose suitable chip for different leds.

Q2. What about the lead time?

A:5-7 days for samples, 2-3 weeks for mass order.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It takes about 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: 1. let us know your requirements or application.

2. We quote according to your requirements or our suggestions.

3. customer confirms the samples and places deposit for formal order.

4. We arrange the production.
