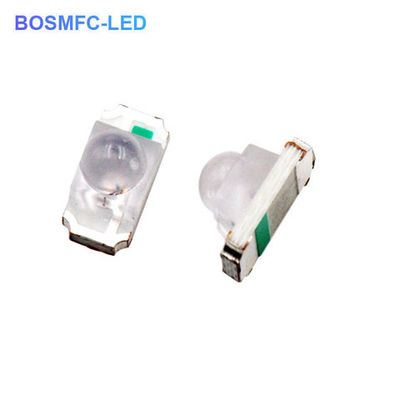

1206 SMD UV LED Chip Dome Lens 405nm UVA Light LED Diode For 3D Printer
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, reach |
| Model Number: | 1206 SMD LED UV 405nm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000pcs |
|---|---|
| Packaging Details: | 000pcs/reel |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 200KK pcs/ month |
|
Detail Information |
|||
| Color: | UVA Light | Wavelength: | 400-410nm |
|---|---|---|---|
| Forward Voltage: | 3.0-3.6V | Viewing Angle: | 60° |
| Lifespan: | 50,000hrs | Operating Temperature: | -40~85℃ |
| Storage Temperature: | -40~100℃ | ||
| Highlight: | 1206 UV LED Chip,UV LED Chip 405nm,3D Printer LED Dome Lens |
||
Product Description

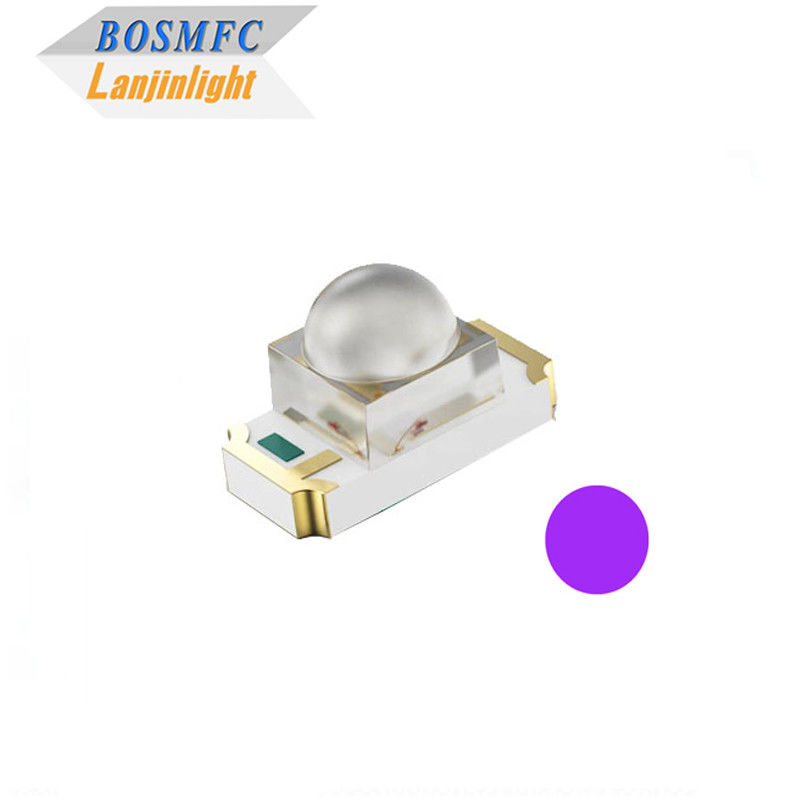

UV LED 1206 smd led dome lens 405nm UVA light led diode for 3D printer
The 0603 SMD LED with a dome lens that emits UVA light at a wavelength of 405nm, This LED diode is specifically designed for use in 3D printers. The 0603 SMD package is a small surface-mounted LED package that offers compact size and convenient integration into electronic circuits. The dome lens on the LED helps to focus and direct the UVA light emitted by the diode. This UV LED is suitable for various applications in 3D printing that require UVA light, such as resin curing and photopolymerization processes.
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Dominant Wavelength | λd | UV | 400 | --- | 410 | nm | IF=20mA |
| Power dissipation | Pt | UV | --- | 10 | --- | mW | IF=20mA |
| Forward voltage | VF | UV | 3.0 | --- | 3.6 | V | IF=20mA |
| Viewing angle | --- | 45 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3.12*1.53*1.85mm |
| Storage Temperature | －40~+100℃ | Packing | 3000pcs/bag |
Applications:
- Printing and Glue Curing
- Plant Grow Light Source
- Coating
- Adhesive
- LED flashlight
- Bio-analysis
- Crime inspection
- Oil leak detection
- Fluorescent Lighting
- Counterfeit detection/security
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
