5730 5630 SMD LED PCBA 110V 220V 3W 9W 18W circuit board Practical For Bulb
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, reach |
| Model Number: | PCB assembly 5730 smd led |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | EPE+ carton |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union, MoneyGram, paypal |
| Supply Ability: | 200KK pcs/ month |
|
Detail Information |
|||
| Base Material: | FR-4/aluminum/ceramic/cem-3/FR-1 | Board Thickness: | 0.2~4.0mm, Flex 0.01~0.25'' |
|---|---|---|---|
| Board Type: | Rigid-pcb,flexible,rigid-flexible | Solder Mask: | 120° |
| Surface Colo: | Green. Red. Blue. White. Black.Yellow | Storage Temperature: | -35℃~+85℃ |
| Highlight: | 5730 SMD LED PCBA,5630 SMD LED PCBA,18W LED Bulb PCB |
||
Product Description
Description:
110v 220v 3w 9w 18w led bulb Pcb SMD 5730 5630 LED driver circuit board china LED factory
Pcb SMD 5730 5630 LED---Lanjin catalog.pdf

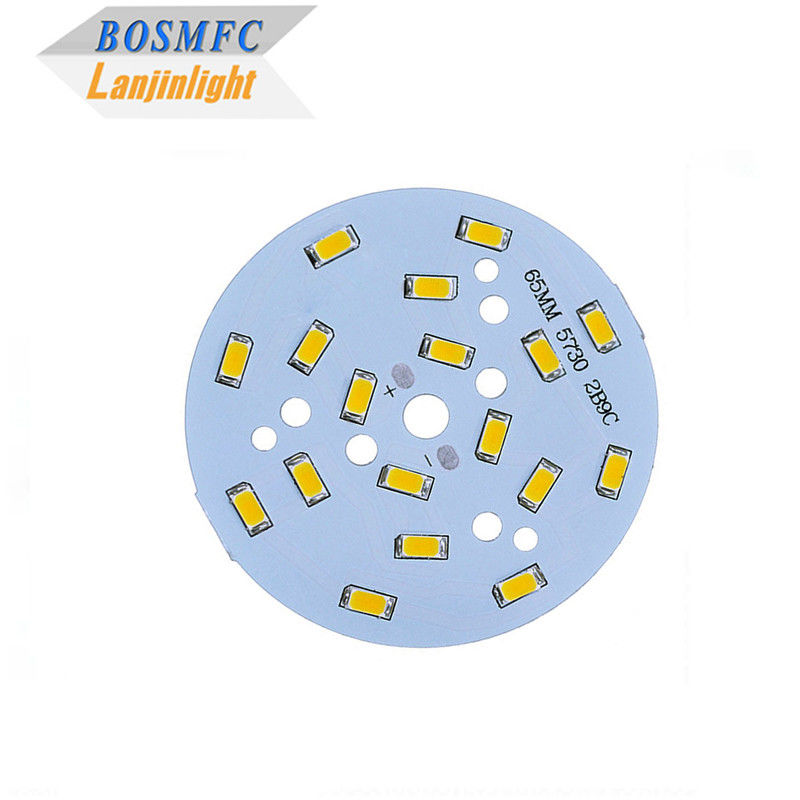

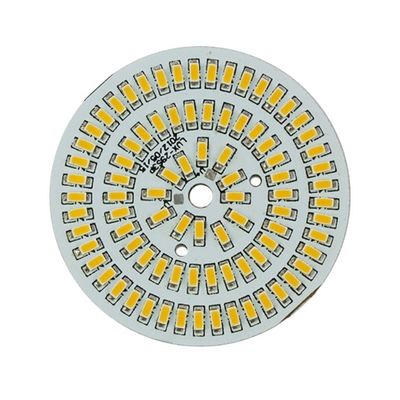

The LED bulb PCB is a high-quality circuit board designed for LED bulbs, specifically compatible with SMD 5730 and 5630 LEDs. This PCB is available in various power options, including 3W, 9W, and 18W, and supports both 110V and 220V input voltages. Manufactured by a reputable LED factory in China, this PCB ensures reliable performance and efficient operation for LED bulb applications.
|
Product Name
|
Custom PCB Printed Circuit Board
|
|
Type
|
PCB
|
|
Material
|
FR4, CEM1, CEM3, High Frequency Board,
|
|
Layer
|
1,2,4,6 Layers
|
|
Shape
|
Rectangular, Round, Slots, Cutouts, Complex, Irregular
|
|
Cutting
|
Shear, V-score, Tab-routed
|
|
Copper Thickness
|
0.5-4oz, regular 1oz
|
|
Solder Mask
|
Green, Red, Blue, Yellow, etc.
|
|
Silk Screen
|
White, Black, etc.
|
|
Silk Screen Min Line Width
|
0.006" or 0.15mm
|
|
Min Trace/Gap
|
0.1mm or 4mils
|
|
Min Drill Hole Diameter
|
0.01",0.25mm or 10mils
|
|
Surface Finish
|
HASL, ENIG, OSP, etc.
|
Applications:
|
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
FAQ:
Q: Are you mamanufacturer?
A: Yes we are 18 years LED manufacturer in China.
Q: Do you provide samples?
A: Yes we can provide free samples according to customers requirements.
Q: What certificates does this product have?
A: We have CE, Reach, ROHS certified.
Q: What about OEM and ODM?
A: We accept OEM and ODM orders, MoQ is open for discussion.
Q: What is depvery terms and time?
A: We use EXW , FOB terms and ship the goods in 7-30 days depend on your order quantity, customization.
