5050 RGB SMD LED PCB Board Assembly 12V 24V 18W Customized Aluminum
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, reach |
| Model Number: | PCB assembly 5050 smd led |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | EPE+ carton |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union, MoneyGram, paypal |
| Supply Ability: | 200KK pcs/ month |
|
Detail Information |
|||
| Base Material: | FR-4/aluminum/ceramic/cem-3/FR-1 | Board Thickness: | 0.2~4.0mm, Flex 0.01~0.25'' |
|---|---|---|---|
| Board Type: | Rigid-pcb,flexible,rigid-flexible | Solder Mask: | 120° |
| Surface Colo: | Green. Red. Blue. White. Black.Yellow | Storage Temperature: | -35℃~+85℃ |
| Highlight: | RGB SMD LED PCB Board,SMD LED PCB Board 12V,18W LED PCB Assembly |
||
Product Description
Description:

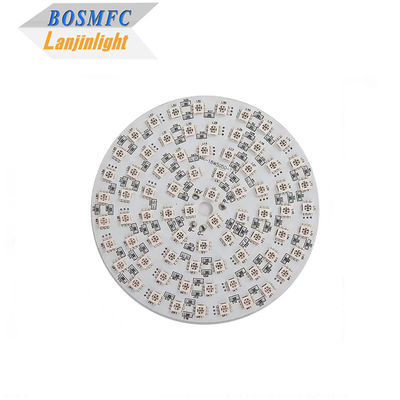

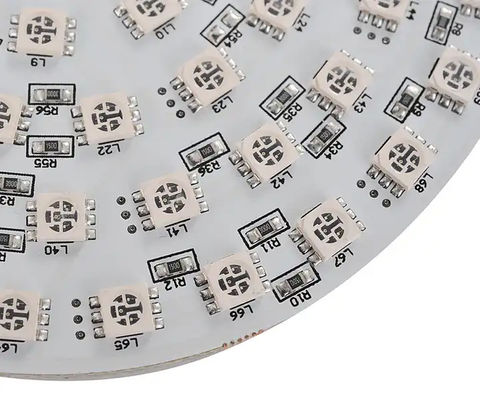

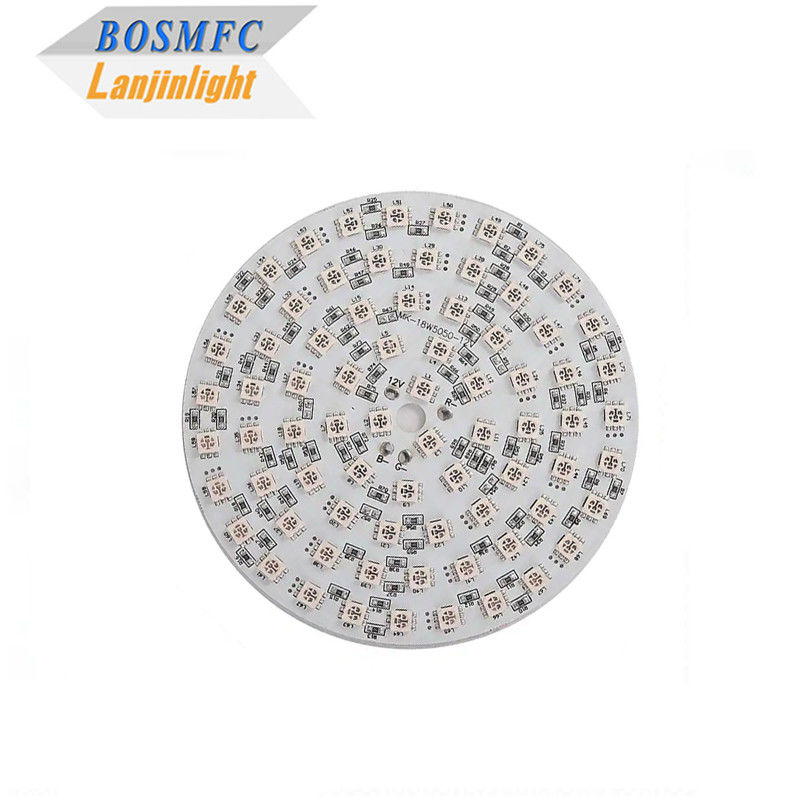

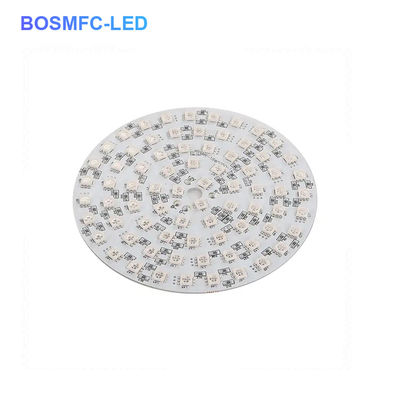

5050 RGB SMD led pcb board 12V 24V 18W customized aluminum led PCBA light board
5050 RGB SMD led pcb board---Lanjin catalog.pdf
The customized aluminum LED PCBA light board is specifically designed for 5050 RGB SMD LEDs. It supports both 12V and 24V input voltages and has a power rating of 18W. The PCB features an aluminum base that provides efficient heat dissipation, ensuring optimal performance and longevity of the LEDs. This PCBA light board can be customized to meet specific requirements and is suitable for a wide range of RGB LED lighting applications.
|
Product Name
|
Custom PCB Printed Circuit Board
|
|
Type
|
PCB
|
|
Material
|
FR4, CEM1, CEM3, High Frequency Board,
|
|
Layer
|
1,2,4,6 Layers
|
|
Shape
|
Rectangular, Round, Slots, Cutouts, Complex, Irregular
|
|
Cutting
|
Shear, V-score, Tab-routed
|
|
Copper Thickness
|
0.5-4oz, regular 1oz
|
|
Solder Mask
|
Green, Red, Blue, Yellow, etc.
|
|
Silk Screen
|
White, Black, etc.
|
|
Silk Screen Min Line Width
|
0.006" or 0.15mm
|
|
Min Trace/Gap
|
0.1mm or 4mils
|
|
Min Drill Hole Diameter
|
0.01",0.25mm or 10mils
|
|
Surface Finish
|
HASL, ENIG, OSP, etc.
|
Applications:
|
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
FAQ:
Q1: Are you a factory?
A: Yes, we are LED factory in Dongguan city, Welcome to your visiting!
Q2: Can you accept OEM and ODM order?
A: Yes. We are able to complete your OEM and ODM orders.
Q3: What certificates does this product have?
A: We have CE, Reach, ROHS certified.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5: What about the lead time?
A: Sample needs about 7-15 working days. Customized products need 2-3 weeks. Mass production 3-4 weeks.
