3W 3535 SMD IR LED Chip 800nm 810nm 120 Degree Viewing Angle For Camera
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 3535 SMD LED IR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000pcs |
|---|---|
| Packaging Details: | 2000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Power: | 0.2 W | Emitting Color: | Infrared Led Light |
|---|---|---|---|
| Wavelength: | 810nm | Forward Current: | 700mA |
| Forward Voltage: | 1.4-1.7v | Viewing Angle: | 120° |
| Size: | 3.5*3.5*2.36mm | Lifespan: | 50,000 Hours |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 2000pcs/reel | ||
| Highlight: | 3535 SMD LED IR,3w IR LED,IR LED 810nm |
||
Product Description

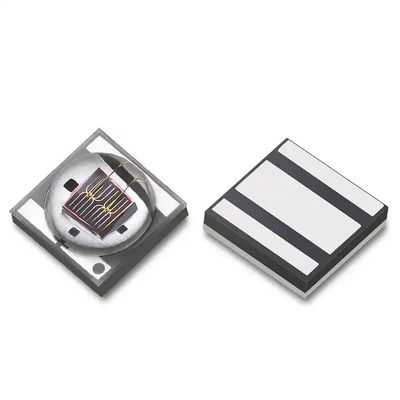

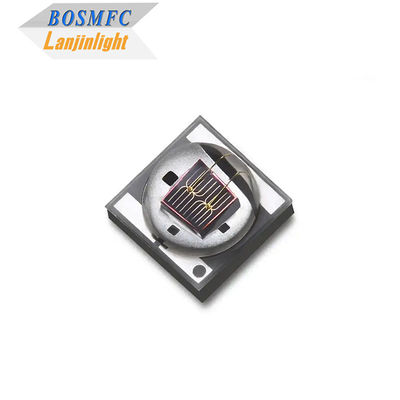

3w 3535 SMD LED IR LED chips 800nm 810nm near infrared led light for camera
3W 3535 SMD LED IR LED chips emit near-infrared light at a wavelength range of 800nm to 810nm. These LEDs are designed to provide high-intensity infrared illumination for camera applications. They come in a compact surface-mount package (3535) and have a power rating of 3 watts. These IR LED chips are suitable for use in various camera systems where enhanced visibility in low-light conditions or night vision capabilities are required.
Features:
- 99.99% gold wire bonding
- Long life span 50,000 hours
- Good heat dissipation
- Low-temp & lead free reflow soldering
- Instant light(less than 100ns)
- RoHS certification
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Infrared | --- | 810 | --- | nm | IF=700mA |
| Radiant power | Ee | Infrared | 300 | --- | 500 | mW | IF=700mA |
| Forward voltage | VF | Infrared | 1.4 | --- | 1.7 | V | IF=700mA |
| Viewing angle | --- | 120 | --- | deg | IF=700mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=700mA |
| Operation Temperature | －40~+85℃ | Size | 3.5*3.5*2.36mm |
| Storage Temperature | －40~+100℃ | Packing | 2000pcs/reel |
Applications:
IR wavelngth: 730nm,740nm, 750nm, 760nm,780nm, 800nm, 810nm, 820nm, 830nm, 840nm, 850nm,880nm, 890m, 940nm, 980nm, 990nm, 1000nm,1050nm, 1100nm, 1550nm 2000nm
- Infrared applied system.
- Counters and sorters
- Encoders
- Floppy disk drive.
- Optoelectronic switch
- Video camera, Tape and card readers
- Position sensors
