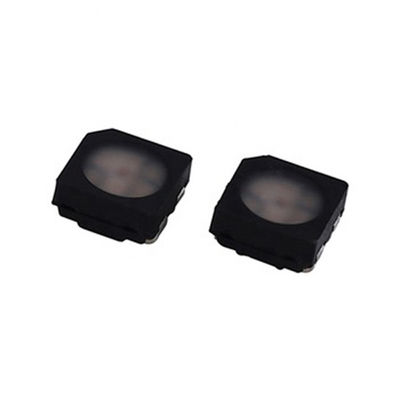

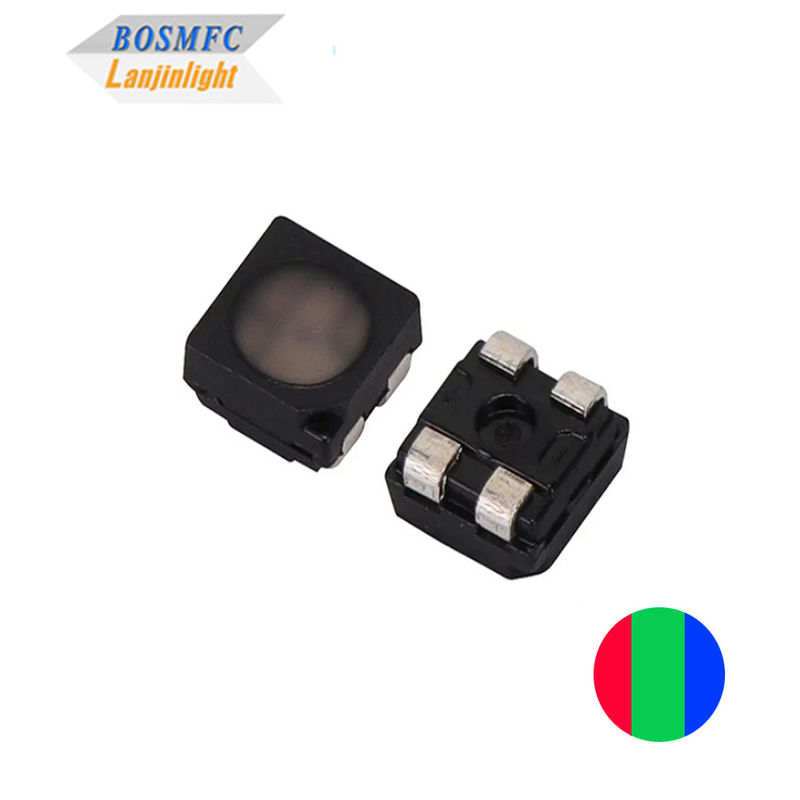

1515 RGB LED Chip Small Package Multi Color LED Diode
High-performance 1515 RGB LED diode designed for LED display lighting applications with superior color mixing capabilities.
Key Features
- Energy-saving and environmentally friendly design
- Extended operational lifespan
- Superior heat dissipation performance
- Minimal light attenuation over time
- Easy installation process
- Strong anti-static protection
- RoHS certified for environmental compliance
Technical Specifications
| Parameter |
Symbol |
Color |
Min |
Typ |
Max |
Unit |
Test Condition |
| Wavelength |
λd |
Red |
620 |
— |
635 |
nm |
IF=10mA |
| Green |
515 |
— |
525 |
| Blue |
460 |
— |
470 |
| Luminous intensity |
Iv |
Red |
|
180 |
|
mcd |
IF=10mA |
| Green |
|
600 |
|
| Blue |
|
120 |
|
| Forward voltage |
VF |
Red |
1.8 |
— |
2.4 |
V |
IF=10mA |
| Green |
2.8 |
— |
3.4 |
| Blue |
2.8 |
— |
3.4 |
| Viewing angle |
|
|
— |
120 |
— |
deg |
IF=10mA |
| Reverse current |
IR |
|
— |
— |
5 |
uA |
IF=10mA |
Operation Temperature: -40°C to +85°C
Storage Temperature: -40°C to +100°C
Dimensions: 1.6 × 1.5 × 1.0 mm
Packaging: 5,000 pieces per reel
Applications
- Mechanical keyboard backlighting
- Decorative and architectural lighting
- Display screens and curtain displays
- Signal and symbol illumination
- Front panel backlighting systems
- Full-color LED strip lighting
- Status and indicator lights
Materials
Company Information
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.
Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.
Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.
Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!
Packaging and Shipping
Inner Packaging: Anti-static bag vacuum packaging
Outer Packaging: Standard export carton packaging
Frequently Asked Questions
Q1: Can I get some free samples for confirmation?
A: Yes, we welcome samples to check our LED quality and performance. Free samples are available according to your requirements.
Q2: How can I get a quotation from you?
A: Please kindly leave us messages about your needs, and our sales team will reply within one hour.
Q3: Can I have a sample order for LED lights?
A: Yes, we welcome sample orders to test and check quality.
Q4: What about the lead time?
A: Samples require approximately 3 working days. Customized products need 5-7 working days. Mass production takes 10-15 days.
Q5: What payment terms do you accept?
A: We accept T/T, PayPal, and Western Union.
Q6: How to proceed with an order for LEDs?
- Inform us of your requirements or application
- We provide quotation based on your requirements or our suggestions
- Customer confirms samples and places deposit for formal order
- We arrange production
