High Voltage 36V 1W 2835 SMD LED Super Brightness Cool White LED Diode
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 2835 SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|
| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power: | 1 W |
|---|---|---|---|
| Emitting Color: | Warm White, Natural White, Cool White | Color Temperature: | 2700-12,000K |
| Forward Current: | 350mA | Forward Voltage: | 34-38v |
| Luminous Flux: | 110-140lm | Viewing Angle: | 120° |
| Size: | 2.8*3.5*0.8mm | Color Rendering Index (Ra): | 85 |
| Operating Temperature(℃): | -40 - +85 | Storage Temperature(℃): | -40 - +100 |
| Lifespan: | 50,000 Hours | Warranty: | 2 Years |
| Chip Brand: | San'an Chip | Package: | 4000pcs/reel |
| Highlight: | Super Brightness 2835 LED,Super Brightness LED Light,2835 light emitting diode |
||
Product Description

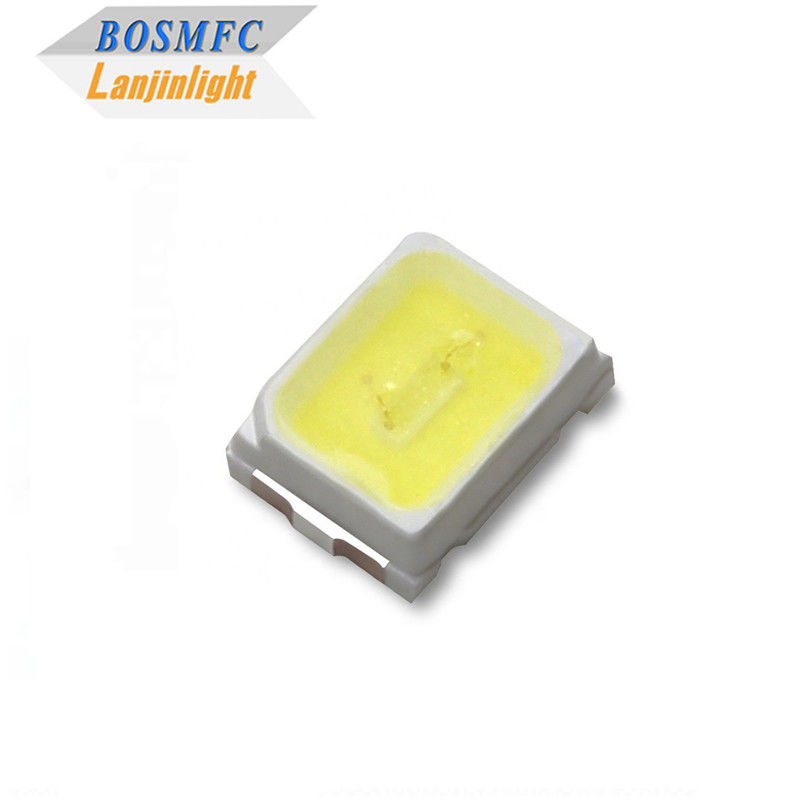

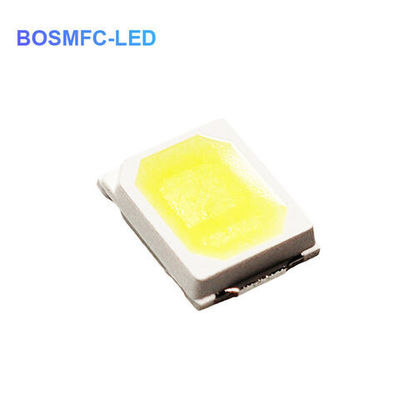

High voltage 36V 1W 2835 SMD LED super brightness cool white LED
2023 new Lanjin catalog.pdf
This is a high voltage LED featuring a 36V power supply, 1W power rating, and 2835 SMD (Surface Mount Device) technology. It is designed to emit a super bright cool white light.
Features:
- Energy saving and environmental protection
- Long life span
- Good heat dissipation
- Low light attenuation
- Easy installation
- Strong anti-static ability
- RoHS certification
Technical Parameters:
Electrical optical characteristics of 2835 Top smd led:(Ta=25°C)
Parameter |
Symbol |
Color |
Min |
Typ |
Max |
Unit |
Test Condition |
Color temperature |
CCT |
warm White |
2700 |
--- |
3400 |
K |
IF=350mA |
Natural White |
4000 |
5000 |
|||||
Cold White |
6500 |
20,000 |
|||||
Luminous intensity |
Iv |
White |
120 |
--- |
140 |
LM |
IF=350mA |
Forward voltage |
VF |
White |
34 |
--- |
38 |
V |
IF=350mA |
Viewing angle |
|
|
--- |
120 |
--- |
deg |
IF=350mA |
Reverse current |
IR |
White |
--- |
---- |
5 |
uA |
IF=350mA |
Operation Temperature |
－40~+85℃ |
Size |
2.8*3.5*0.8mm |
Storage Temperature |
－40~+100℃ |
Packing |
4000pcs/reel |
Applications:
- Indoor and outdoor commercial lighting
- LED backlighting and SMD type indicators
- LED modules and LED strip lights
- Decorative lighting and dashboard backlighting
- Automotive lamps, automotive electronics, and traffic lights
- Mobile phones, digital cameras, and flash photoelectric displays
- Backlight displays
- LED taillights, LED brake lights, and in-vehicle lighting.
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trading company?
A1: We are a professional LED manufacturer with 18 years of experience, providing one-stop OEM and ODM services to partners worldwide.
Q2: Can I request some samples for testing?
A2: Certainly! We welcome sample orders for you to test and evaluate the quality of our LEDs.
Q3: What payment methods do you accept?
A3: We accept payment through T/T, Paypal, and Western Union.
Q4: What is the lead time for orders?
A4: Typically, the lead time is around 10-15 days. However, for standard samples, delivery can be as quick as 3 days.
Q5: How can I place an order?
A5: Here is the order process:
Let us know your requirements or application.
We will provide a quotation based on your requirements or offer our suggestions.
Once you confirm the samples and place the order, we will arrange production accordingly.
