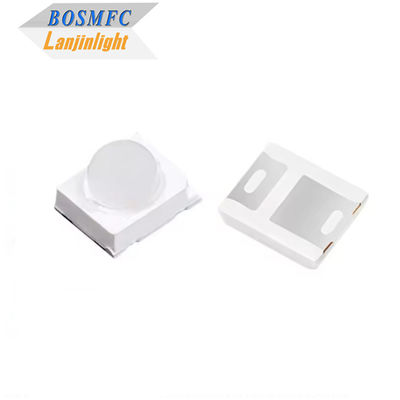

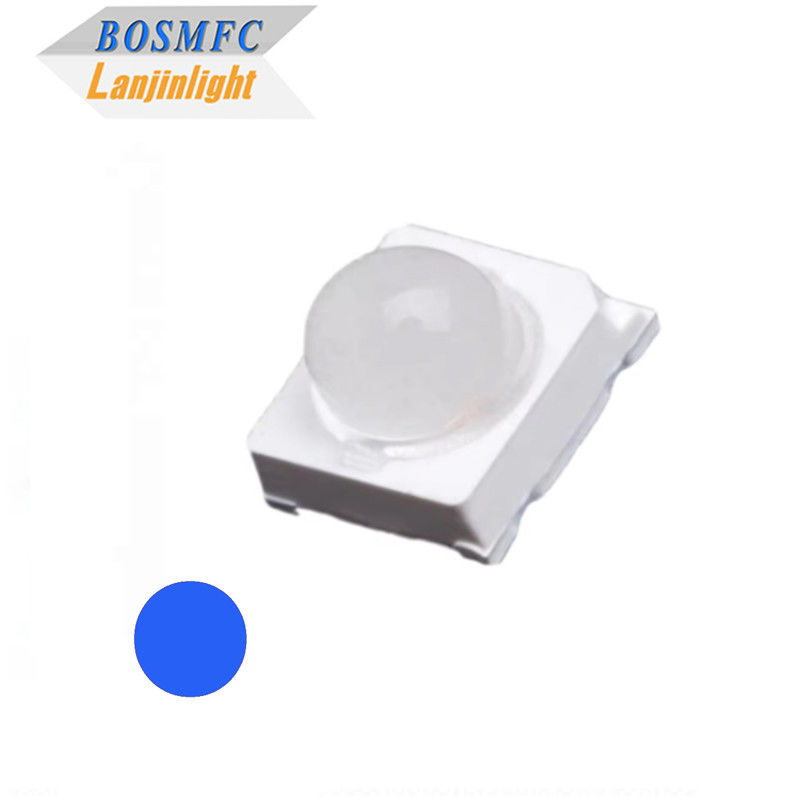

Small View Angle 30 Degree 60 Degree 6000mcd Blue 2835 SMD LED With Dome Lens For Traffic LED Signs
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 2835 SMD LED dome lens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000pcs |
|---|---|
| Packaging Details: | 2000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power: | 0.2 W |
|---|---|---|---|
| Emitting Color: | Blue | Wavelength: | 460-470nm |
| Forward Current: | 60mA | Forward Voltage: | 2.8-3.6v |
| Luminous Flux: | 4000-6000mcd | Viewing Angle: | 30° |
| Size: | 2.8*3.5*2.2mm | Color Rendering Index (Ra): | 85 |
| Operating Temperature(℃): | -40 - +85 | Storage Temperature(℃): | -40 - +100 |
| Lifespan: | 50,000 Hours | Warranty: | 3 Years |
| Chip Brand: | San'an Chip / Epistar Chip | Package: | 2000pcs/reel |
| Highlight: | 30 degree LED Dome Lens,Blue LED Dome Lens,6000mcd LED Dome Lens |
||
Product Description
Small View Angle 30 degree 60degree 6000mcd Blue 2835 SMD LED with dome lens for traffic LED signs
Features:
- Energy saving and environmental protection
- Long life span
- Good heat dissipation
- Low light attenuation
- Easy installation
- Strong anti-static ability
- RoHS certification
Technical Parameters:
Electrical optical characteristics of 3528 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Blue | 460 | --- | 470 | nm | IF=60mA |
| Luminous intensity | Iv | Blue | 4000 | --- | 6000 | mcd | IF=60mA |
| Forward voltage | VF | Blue | 2.8 | --- | 3.4 | V | IF=60mA |
| Viewing angle | --- | 30 | --- | deg | IF=60mA | ||
| Reverse current | IR | Blue | --- | ---- | 5 | uA | IF=60mA |
| Operation Temperature | －40~+85℃ | Size | 3.5*2.8*2.2mm |
| Storage Temperature | －40~+100℃ | Packing | 2000pcs/reel |
Applications:
- LED traffic lights, traffic signs
- LED backlight and SMD type indicator
- LED module and LED strip light
- Decoration light, backlight in dashboards and switches
- Auto lamp, automotive electronics.
- Digital camera, flash photoelectric display, backlight display
- LED Taillight, LED Brake Light , Turn light.
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1. MOQ and delivery time ?
A: NO MOQ required, sample testing welcome.. Mixed samples are acceptable.
Sample needs 3-5 days, mass production time needs 2-3 weeks for order quantity
Q2. What about the lead time?
A: Firstly,let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly,We arrange the production.
Q3. Can you do OEM?
A: Yes, we are 18 years factory,we have design team, engineer team, after-service team QC team etc.5.What is your payment term?
T/T,Western Union credit and Paypal.This is negotiable.
Q4.What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
Q5.How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come
from.
