PLCC4 2121 RGB LED Chip Full Colors LED Diode For LED Display Screen

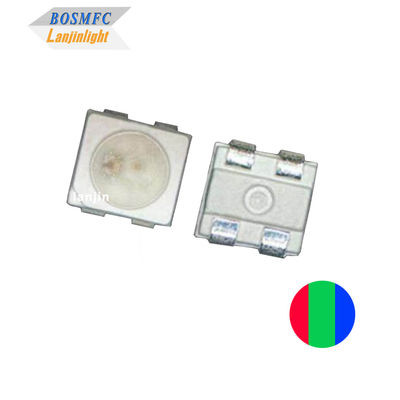

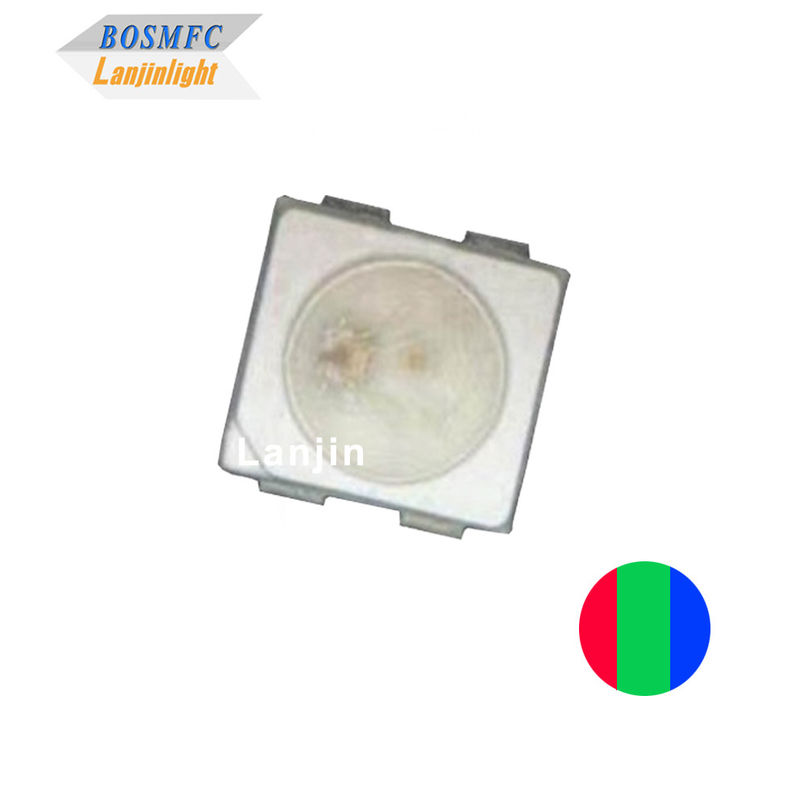

Large Image : PLCC4 2121 RGB LED Chip Full Colors LED Diode For LED Display Screen

Product Details:

Place of Origin:	China
Brand Name:	BOSMFC
Certification:	Rohs, Reach
Model Number:	2121 RGB SMD LED

Payment & Shipping Terms:

Minimum Order Quantity:	10000pcs
Packaging Details:	Reel+Anti-static bag+carton
Delivery Time:	5-15 days
Payment Terms:	T/T,Western Union,paypal
Supply Ability:	500KK/month

Contact Now

PLCC4 2121 RGB LED Chip Full Colors LED Diode For LED Display Screen

Description

Application:	Indoor & Outdoor Lighting	Power Dissipation:	60mW
Color:	RGB Light	Wavelength:	620-630 / 515-525 / 460-470 Nm
Luminous Intensity:	180/ 650/ 110mcd	Forward Current:	20mA
Forward Voltage:	1.8-2.4/2.8-3.4 /2.8-3.4v	Size:	2.12.11.0mm
Warranty:	3 Years	Chip Brand:	San'an Chip / Epistar Chip
Package:	4000pcs/reel	Lifetime:	50000h
Operating Temperature:	-40℃~85℃	Reverse Voltage:	5V
Storage Temperature:	-40℃~100℃
Highlight:	PLCC4 2121 RGB LED Chip , Full Colors RGB LED Chip

PLCC4 2121 RGB LED Chip Full Colors LED Diode For LED Display Screen

High-performance RGB LED chip designed for professional display applications with full color spectrum capability.

Key Features

Energy-saving and environmentally friendly design
Extended operational lifespan
Superior heat dissipation performance
Minimal light attenuation over time
Easy installation process
Strong anti-static capability
RoHS certified for environmental compliance

Technical Specifications

Parameter	Symbol	Color	Min	Typ	Max	Unit	Test Condition
Wavelength	λd	Red	620	—	630	nm	IF=10mA
		Green	515	—	525
		Blue	460	—	470
Luminous intensity	Iv	Red		180		mcd	IF=10mA
		Green		650
		Blue		110
Forward voltage	VF	Red	1.8	—	2.4	V	IF=10mA
		Green	2.8	—	3.4
		Blue	2.8	—	3.4
Viewing angle			—	120	—	deg	IF=10mA
Reverse current	IR		—	—	5	uA	IF=10mA

Operation Temperature: -40°C to +85°C
Size: 2.1 × 2.1 × 1.0 mm
Storage Temperature: -40°C to +100°C
Packing: 5000 pieces per reel

Applications

Mechanical keyboard lighting
Decorative lighting systems
Display screens and curtain displays
Signal and symbol lighting
Front panel backlighting
Full-color strip lighting
Status indicators and displays

Materials and Construction

Company Information

Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.

Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.

Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.

Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!

Packaging and Shipping

Inner packaging: Anti-static Bag Vacuum Packaging
Outer packaging: Standard export carton packing

Frequently Asked Questions

Q1. Can I have a sample order?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable. Free samples are available. We can also create custom samples according to your specific requirements.

Q2: What's the delivery time?

Standard production typically takes 5-7 days. Exact delivery times may vary depending on order specifics and current production schedules.

Q3: What's your warranty terms?

All our LED products come with a 2-year comprehensive warranty.

Q4: How does your factory do regarding quality control?

Quality is our top priority. We implement rigorous quality control measures throughout the entire production process, from raw materials to finished products. Every unit undergoes complete assembly and thorough testing before packaging and shipment.
