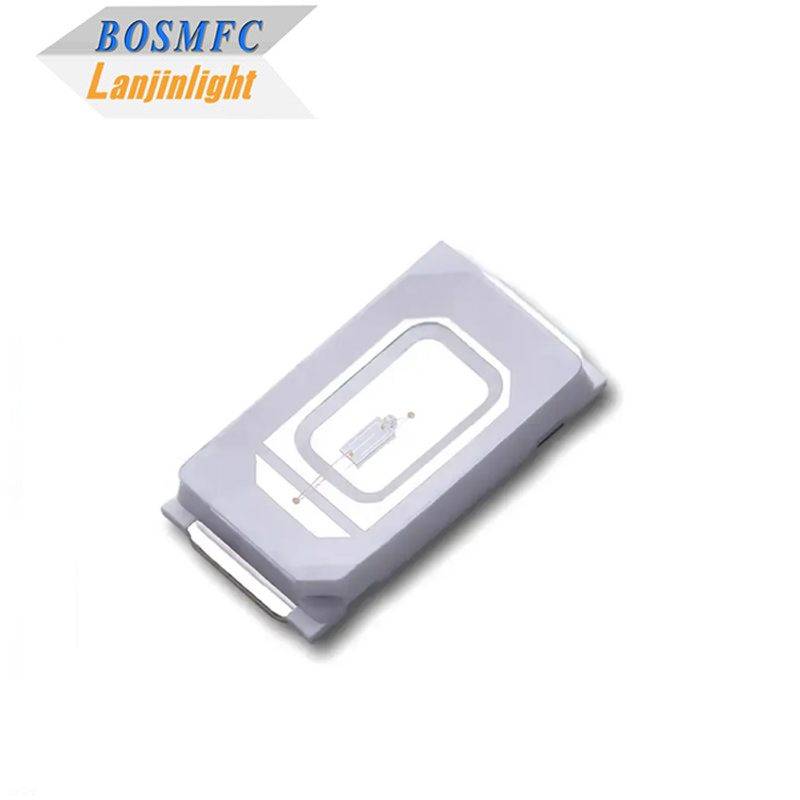

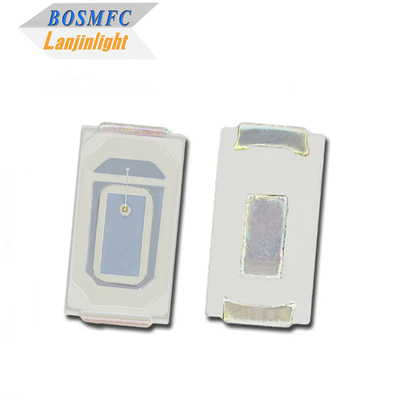

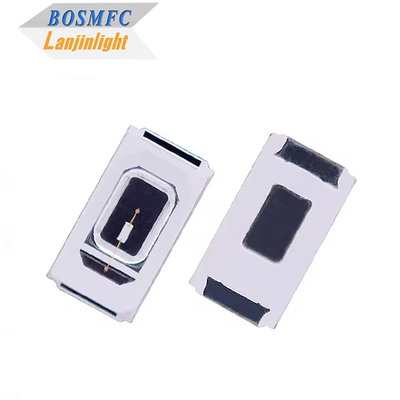

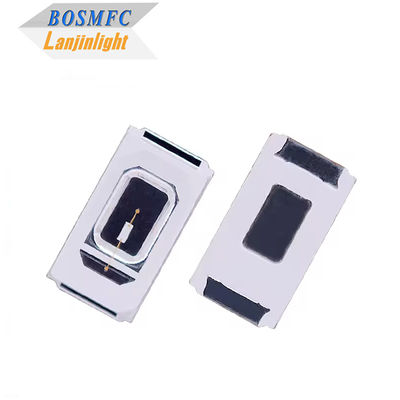

High Bright 0.5W 0.2W 5730 SMD LED Chip Red LED for Beauty Device Lighting
High-performance 5730 SMD LED chip specifically designed for beauty device lighting applications, offering exceptional brightness and reliability.
Key Features
- Low energy consumption for efficient operation
- Long lifespan with solid quality reliability
- Available on tape and reel for automated assembly
- RoHS compliant for environmental safety
- Suitable for all SMT assembly methods
- 99.9% pure gold wire for superior conductivity
Technical Specifications
| Emitting Color |
Red |
LED Type |
5730 SMD |
| Power Dissipation |
0.5W |
Lens |
Water Clear |
| Material |
AIGaInP |
Forward Current |
150mA |
| Peak Forward Current |
200mA |
Luminous Flux |
20-22lm |
| Wavelength |
620-660nm |
Forward Voltage |
1.8-2.4V |
| Viewing Angle |
120° |
Reverse Voltage |
5V |
| Operation Temperature |
-40 to +180°C |
Storage Temperature |
-40 to +180°C |
| Size |
5.7*3.0*0.8mm |
Packing |
4000pcs/reel |
Applications
- Beauty device lighting
- Substitution of micro incandescent lamps
- Traffic lights and signals
- Interior and exterior automotive lighting (dashboard backlighting, brake lights)
- Backlighting applications (LCD displays, cellular phones, switches, keys, illuminated advertising)
- LED tubes, LED strips, LED bulbs, LED spotlights and more
Materials and Construction
Company Information
Dongguan Lanjin Optoelectronics Co., Ltd., established in 2005, is a professional manufacturer specializing in light emitting diodes, LED digital displays, SMD LEDs, through-hole LEDs, and LED PCB assembly services. Operating from a 2,500 square meter factory with modern purification, constant temperature, and humidity anti-static production workshops. The company holds ISO9001:2015 international Quality Management System certification and is pursuing ISO14001 Environmental Management System certification.
With 18 years of development, Lanjin has achieved 2 national invention patents, 12 practical new-type patents, and 2 software invention patents. All products comply with EU RoHS standards. The company incorporates advanced manufacturing technology from Japan, Korea, and Western Europe, developing high-temperature resistance and long-life LEDs widely used in communication equipment, switching power supplies, decorative lighting, multi-speakers, DVD systems, and other electronic applications.
Lanjin operates on the principle of "Quality and Customer First," providing customized services according to customer requirements.
Packaging and Shipping
Inner packaging: Anti-static Bag Vacuum Packaging
Outer packaging: Standard export carton packing
Frequently Asked Questions
Q1. Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, and free samples are available. We can also create custom samples according to your specific requirements.
Q2. What's the delivery time?
Production typically takes about 5-7 days for standard orders. Exact delivery times may vary depending on order specifics and current production schedules.
Q3. What's your warranty terms?
All our LED products come with a 2-year warranty covering manufacturing defects and performance issues.
Q4. How does your factory do regarding quality control?
Quality is our top priority. We implement comprehensive quality control measures throughout the entire production process, from raw materials to finished products. Every product undergoes full assembly and thorough testing before packaging and shipment to ensure optimal performance and reliability.
