Stable 12mA Multi Color Built In IC 3535 SMD LED SK6812 WS2811 Full Color

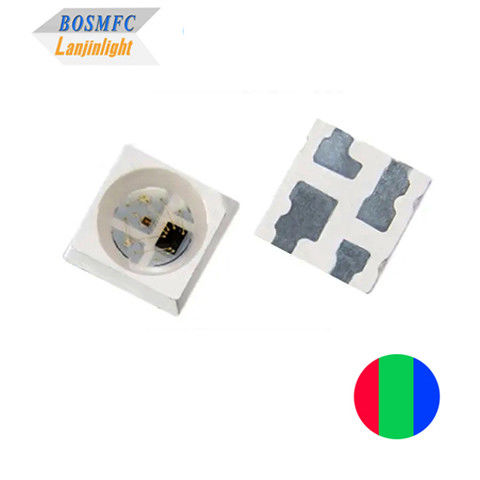

Large Image : Stable 12mA Multi Color Built In IC 3535 SMD LED SK6812 WS2811 Full Color

Product Details:

Place of Origin:	China
Brand Name:	BOSMFC
Certification:	Rohs, Reach
Model Number:	3535 RGB SMD LED with IC

Payment & Shipping Terms:

Minimum Order Quantity:	10,000pcs
Packaging Details:	1500pcs/reel, Reel+Anti-static bag+carton
Delivery Time:	5-15 days
Payment Terms:	T/T, Western Union, paypal
Supply Ability:	500KK/month

Contact Now

Stable 12mA Multi Color Built In IC 3535 SMD LED SK6812 WS2811 Full Color

Description

Application:	Indoor & Outdoor Lighting	Color:	Full Colors Changing Light RGB
Wavelength:	620-635 / 525-535 / 466-472 Nm	Forward Current:	12mA
Forward Voltage:	3.5-5.5v	Size:	3.73.50.95mm
Warranty:	3 Years	Chip Brand:	San'an Chip / Epistar Chip
Package:	1500pcs/reel	Lifetime:	50000h
Operating Temperature:	-40℃~85℃	Storage Temperature:	-40℃~100℃
Highlight:	3535 rgb multi color led headlight , RGB LED built-in IC , SK6812 WS2811 RGB LED

Built-in IC SMD 3535 RGB LED SK6812 WS2811 full color 3535 RGB SMD LED China 18 years LED manufacturer

The Built-in IC SMD 3535 RGB LED is a high-quality LED diode manufactured by a reputable LED manufacturer in China with 18 years of experience. It features a compact SMD 3535 package and incorporates the SK6812 and WS2811 ICs, allowing for full-color illumination and versatile control options.

Features:

Long lifespan
Pure gold wire bonding
Low-temp & lead free reflow soldering
Maintenance free, easy installation
Low Voltage DC operated
Superior ESD protection

Technical Parameters:

Electrical optical characteristics :(Ta=25°C)

Parameter	Symbol	Color	Min	Typ	Max	Unit	Test Condition
Wavelength	λd	Red Green Blue	625 525 466	---	635 535 472	nm	IF=12mA
Luminous intensity	Iv	Red Green Blue		500 2000 500		mcd	IF=12mA
Forward voltage	VF	Red Green Blue	3.5	---	5.5	V	IF=12mA
Viewing angle			---	120	---	deg	IF=12mA
Reverse current	IR		---	----	5	uA	IF=12mA

Operation Temperature	－40~+85℃	Size	3.73.50.95mm
Storage Temperature	－40~+100℃	Packing3	1500pcs/reel

Stable 12mA Multi Color Built In IC 3535 SMD LED SK6812 WS2811 Full Color 0

Stable 12mA Multi Color Built In IC 3535 SMD LED SK6812 WS2811 Full Color 1

Applications:

Automobile luminous sign, magic LED handbag, LED smart women jewelry, dream color shoes
Mobile phone, digital camera, flash photoelectric display
Dynamic and colorful lighting effects in buildings, bridges, and other architectural structures.
LED flexible full-color pixel screen, LED color clothing
Interior ambient lighting, accent lighting, and decorative lighting
LED color model, keyboard, smart bracelet, angel eyes, full color LED display

Materials:

Stable 12mA Multi Color Built In IC 3535 SMD LED SK6812 WS2811 Full Color 2

Company information:

Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.

Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.

Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.

Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!

Stable 12mA Multi Color Built In IC 3535 SMD LED SK6812 WS2811 Full Color 3

Packing and Shipping:

Inner packaging: Anti-static Bag Vacuo Packaging

Outer packaging: Standard export carton packing.

Stable 12mA Multi Color Built In IC 3535 SMD LED SK6812 WS2811 Full Color 4

Stable 12mA Multi Color Built In IC 3535 SMD LED SK6812 WS2811 Full Color 5

FAQ:

Q1. Can I have a sample order of the led?
A: Yes, we welcome sample order to test. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 1-3 working days, mass production needs 7-15 working days if order quantity more than 10K.

Q3. What's the Payment method?
A: We accept Alibaba Trade Assurance(Credit card or T/T),Paypal, and Western Union payment.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-6 working days to arrive. Airline and sea shipping also are optional.

Q5. How to proceed an order for the led?
A: for some products, you can buy on our web directly; otherwise, please contact our sales:

Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
