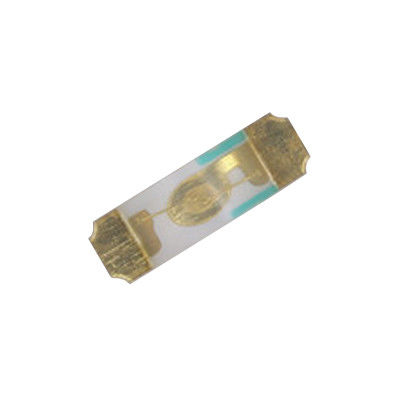

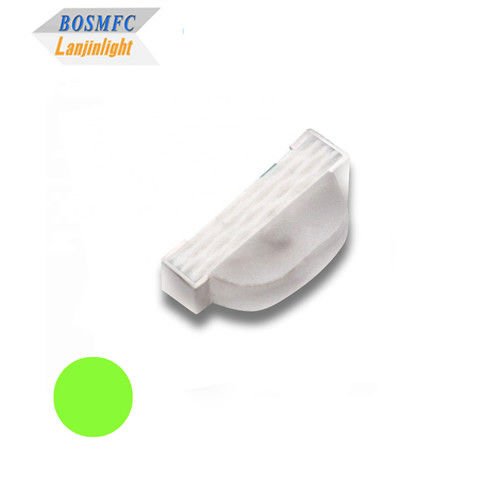

60mW Practical Side View LED SMD 0805 , Yellow Green 568nm - 573nm Indoor Lighting Single LED Chip
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | Side view 0805 yellow green SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|
| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor/Outdoor Lighting | Power Dissipation: | 60mW |
|---|---|---|---|
| Color: | Yellow Green | Wavelength: | 568-576nm |
| Luminous Intensity: | 35-80 Mcd | Forward Current: | 20mA |
| Forward Voltage: | 1.8-2.4v | Size: | 2.1*0.6*1.0mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip/ Epistar Chip |
| Package: | 4000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 60mW 0805 Side View SMD LED,Yellow Green LED Light Chip,0805 Yellow Green Light |
||
Product Description
side view 0805 smd led yellow green Competitive Price High Quality Led Lights
side view 0805 smd led---Lanjin catalog.pdf
Features:
- Long life span
- lower Maintenance Cost
- RoHS compliant
- Fast Turn-on time
- high current capability
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Yellow green | 568 | --- | 576 | nm | IF=20mA |
| Luminous intensity | Iv | Yellow green | 35 | --- | 80 | mcd | IF=20mA |
| Forward voltage | VF | Yellow green | 1.8 | --- | 2.4 | V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 2.1*0.6*1.0mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
1. Indicator and backlight for audio and vedio equipment
2. Flat backlight for LCD's, switches and symbols
3. Light pipe application
4. General use
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: How can I get a quotation from you?
A2: Please kindly leave us messages about your needs,including products and quantity,our sales team will reply you in one hour.
Q3. Can I have a sample order for led light?
A3: Yes, we welcome sample order to test and check quality.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
