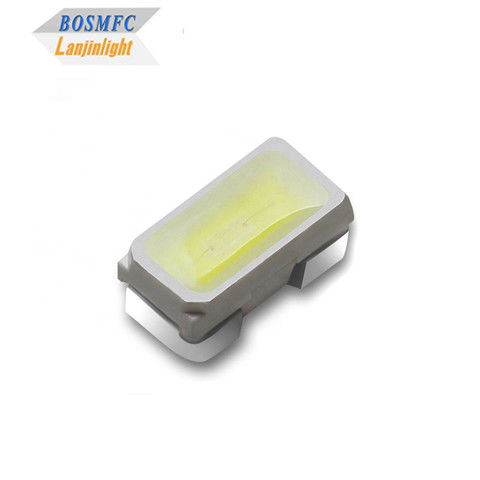

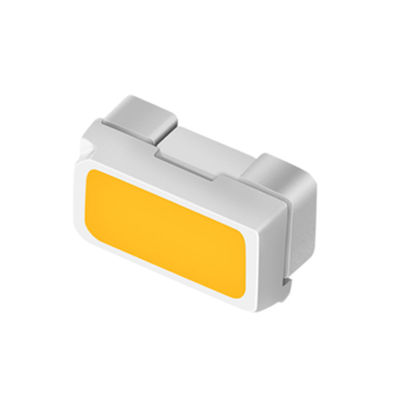

2800-12000K SMD Side LED , 0.2W 0.5W Multipurpose 3014 LED Chip
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | Side view 3014 white SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000pcs |
|---|---|
| Packaging Details: | 3000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor/Outdoor Lighting | Power Dissipation: | 60mW |
|---|---|---|---|
| Color: | White Light | Wavelength: | 2800-12000K |
| Luminous Intensity: | 8-12LM | Forward Current: | 20mA |
| Forward Voltage: | 2.8-3.6v | Size: | 3.0*1.4*1.37mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip |
| Package: | 3000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | Multi Function Type SMD LED,3014 SMD LED side view,White SMD LED Diode |
||
Product Description
Side view 3014 SMD LED Chips Best Quality Professional White Light 2800-12000K 0.2W 0.5W Wholesale SMD LED
Features:
- Side looking special for LCD backlight.
- 99.99% gold wire bonding
- Efficient heat dissipation
- Strong anti-static ability
- Meet RoHS Green Product
- Energy-saving and environmentally friendly
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | White | 2800 | --- | 12000 | K | IF=20mA |
| Luminous intensity | Iv | White | 8 | --- | 12 | LM | IF=20mA |
| Forward voltage | VF | White | 2.8 | --- | 3.6 | V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3.0*1.4*1.37mm |
| Storage Temperature | －40~+100℃ | Packing | 3000pcs/reel |
Applications:
- Indoor displays
- Substitution of micro incandescent lamps
- traffic lights, backlighting
- Interior and exterior automotive lighting
- Widely used in Led Tube,Led lamp,Led Strip,Led Bulb,Led spotlight,Led Downlight,etc
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory?
A: Yes, we have our own factory in Donguan, if you have time come China, welcome your visisting!
Q2: Could you please send me the free sample, so that I could see and check its quality?
A: Yes. We can send you free samples first, if the value is low. But our clients should pay for the shipping freight themselves. Samples fee needs to be charged if the value is high.
Q3: Can you accept OEM and ODM order?
A: Yes. We are able to complete your OEM and ODM orders. We have large quantities of led products in stock for normal models. For special models, it will takes some time to customize them.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
