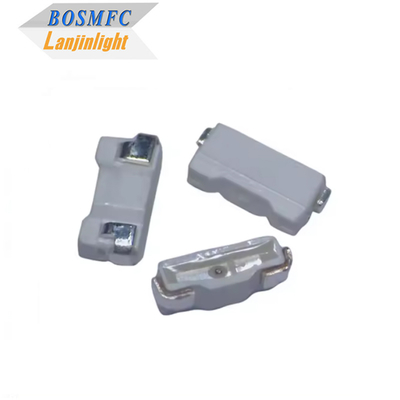

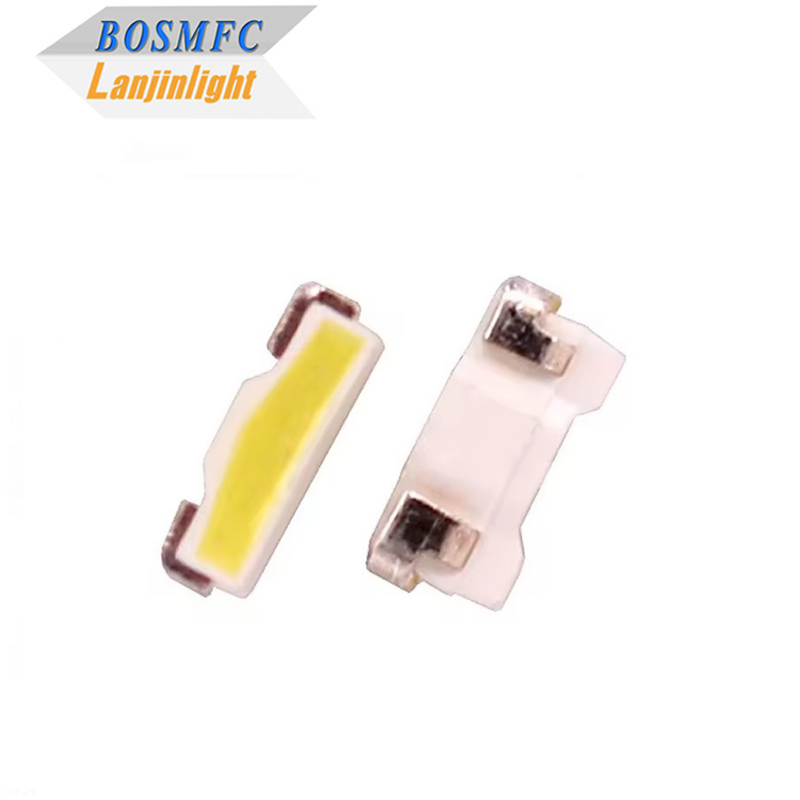

215 SMD LED chip side view Warm White Natural White Cool White LED for TV backlight diode

215 SMD LED chip side view Warm White Natural White Cool White LED for TV backlight diode
215 SMD LED chip side view Warm White Natural White Cool White LED for TV backlight diode 215 SMD LED chip side view Warm White Natural White Cool White LED for TV backlight diode

Large Image :  215 SMD LED chip side view Warm White Natural White Cool White LED for TV backlight diode

Product Details:
Place of Origin: China
Brand Name: BOSMFC
Certification: Rohs, Reach
Model Number: 215 Side View LED
Payment & Shipping Terms:
Minimum Order Quantity: 10,000pcs
Packaging Details: 4000pcs/reel, Reel+Anti-static bag+carton
Delivery Time: 5-15 days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 500KK/month
Contact Now

215 SMD LED chip side view Warm White Natural White Cool White LED for TV backlight diode

Description
Application: TV Backlight Color: Warm White, Natural White, Cool White
Color Temperature: 2700-20,000K Forward Current: 5mA
Forward Voltage: 2.8~3.4v Size: 2.8*1.2*0.8mm
Warranty: 2 Years Chip Brand: San'an Chip / Epistar Chip
Package: 4000pcs/reel Lifetime: 50,000h
Operating Temperature: -40℃~85℃ Storage Temperature: -40℃~100℃

215 SMD LED chip side view Warm White Natural White Cool White LED for TV backlight diode



Features:

  1. Pure gold wires bonding
  2. Long life span 50,000 hours
  3. Pb free and radiationless
  4. Low-temp & lead free reflow soldering
  5. Efficient heat dissipation
  6. Energy-saving and environmentally friendly



  Technical Parameters:

Electrical optical characteristics :(Ta=25°C)



Parameter Symbol Color Min Typ Max Unit Test Condition
Color temperature CCT Warm white

Natural white

Cool white

 2700

4000

6500

 --- 3400

5000

20,000

 K IF=20mA
Luminous intensity Iv White 1500 --- 3000 mcd IF=20mA
Forward voltage VF White 2.8 --- 3.4 V IF=20mA
Viewing angle     --- 120 --- deg IF=20mA
Reverse current IR White --- ---- 5 uA IF=20mA
Operation Temperature －40~+85℃ Size 2.8*1.2*0.8mm
Storage Temperature －40~+100℃ Packing 4000pcs/reel

215 SMD LED chip side view Warm White Natural White Cool White LED for TV backlight diode 0

Applications:

  1. Indoor displays
  2. Substitution of micro incandescent lamps
  3. traffic lights, backlighting
  4. Interior and exterior automotive lighting
  5. Widely used in Led Tube,Led lamp,Led Strip,Led Bulb,Led spotlight,Led Downlight,etc

Materials:

215 SMD LED chip side view Warm White Natural White Cool White LED for TV backlight diode 1



Company information:

Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.

Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.

Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.

Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!



215 SMD LED chip side view Warm White Natural White Cool White LED for TV backlight diode 2

Packing and Shipping:



Inner packaging: Anti-static Bag Vacuo Packaging

Outer packaging: Standard export carton packing.

215 SMD LED chip side view Warm White Natural White Cool White LED for TV backlight diode 3

215 SMD LED chip side view Warm White Natural White Cool White LED for TV backlight diode 4



FAQ:

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable .free samples will be available.We can
also make samples according to your requirements.

Q2: What’s the delivery time?

A: It usually takes about 5-7 days to produce an order. But the exact delivery time might be different for different orders or at
different time.

Q3:What's your warranty terms?

A: The warranty for all our Led products is 2 years.

Q4: How does your factory do regarding quality control?

A: Quality is priority.We always believe Quality is our marketing and attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for
shipment.
